MedWorkUp — Clinical Diagnostic Assistant

MedWorkUp — Clinical Diagnostic Assistant#

Overview#

Clinical notes contain critical diagnostic information that, when processed intelligently, can generate structured differential diagnoses to support clinical decision-making.

This blueprint presents a nine-step NLP pipeline that processes raw clinical (SOAP format) notes through:

Preprocessing — SOAP section detection, negation handling, abbreviation expansion
Named Entity Recognition — Parallel GLiNER biomedical NER and MedCAT concept linking
Entity Aggregation — Span merging, deduplication, and normalization
Semantic Embeddings — SapBERT cosine-similarity clustering of clinical entities
Categorization — LLM-based classification of entities into symptoms / diseases / findings
Candidate Generation — Differential diagnosis candidate list via LLM reasoning
Evidence Reasoning — Constrained chain-of-thought reasoning grounded in extracted evidence
Ranking — Score-based sorting and confidence filtering
Consistency Check — Cross-verification and diagnosis adjustment via LLM

AMD Solution Blueprints are packaged as helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

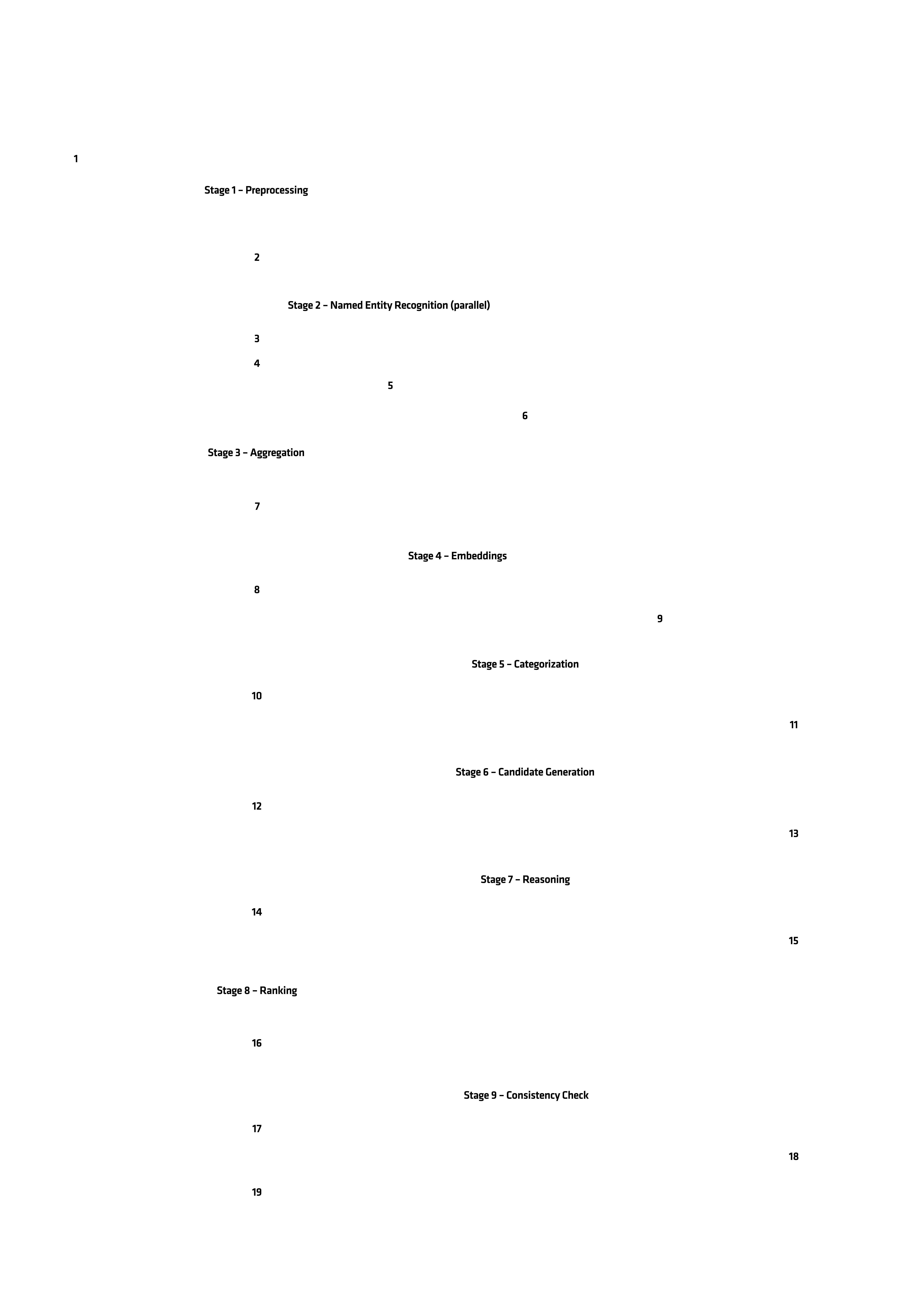

Architecture#

Requests flow from the browser UI to the orchestrator, which drives the nine-step pipeline across the NER, embedding, MedCAT, and MedGemma services over internal cluster DNS:

Browser → http://localhost:8080 (UI / nginx)
              │
              └─► orchestrator:8003  (FastAPI NLP pipeline)
                      ├─► ner-service:8001        (GLiNER NER)
                      ├─► embedding-service:8002  (SapBERT embeddings)
                      ├─► medcat-service:8004      (MedCAT NER+L)
                      └─► medgemma:80               (MedGemma 27B LLM, via the aimchart-llm subchart)

MedWorkUp is composed of six services:

Component	Port	Role
UI	8080	nginx reverse proxy + React SPA. Primary user entry point.
Orchestrator	8003	FastAPI service that drives the 9-step NLP pipeline and exposes `/analyze`, `/health`, `/sys/health`, and `/pipeline` endpoints.
NER Service	8001	GLiNER biomedical named entity recognition. Supports ONNX mode (fast, offline) and HuggingFace mode (auto-download).
Embedding Service	8002	SapBERT biomedical embeddings for entity similarity clustering. Supports ONNX and HuggingFace modes.
MedCAT Service	8004	CogStack MedCAT NER+L REST API for UMLS/SNOMED concept linking. Uses pre-built `cogstacksystems/medcat-service` image.
MedGemma	80	MedGemma 27B multimodal LLM served via AMD AIM, deployed as the `aimchart-llm` subchart. Requires AMD GPU with ROCm.

Key Features#

Full control over your data and privacy — clinical notes are processed entirely within your own infrastructure, with no calls to external APIs
Structured, evidence-grounded differential diagnoses produced from free-text SOAP notes
Combines specialized biomedical models (GLiNER, SapBERT, MedCAT) with MedGemma 27B reasoning
Transparent and inspectable — every pipeline stage and its evidence can be logged, debugged, and audited
Offline-capable model loading via ONNX mode for air-gapped or regulated environments
Suitable for regulated healthcare settings where cloud clinical NLP services are restricted or disallowed

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options — creating the required credential secrets, reusing storage, or enabling gateway access — see the advanced deployment guide.

Prerequisites#

System Requirements#

This blueprint can be deployed on AMD Instinct. The blueprint requires the following cluster resources by default:

Resource	Default Configuration
GPUs	1 (AMD Instinct, for MedGemma)
CPUs	35 CPU cores
RAM	243 GiB

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

kubectl: Installed and configured to communicate with the cluster
Helm 3.16 – 4.2.0: Installed on your local machine
A HuggingFace token from an account that has accepted the MedGemma license (for the MedGemma model download — a token alone is not sufficient), and a UMLS API key (for MedCAT), provided as Kubernetes Secrets — see the advanced deployment guide

Deployment#

For advanced deployment options, explore the advanced deployment guide. Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. After creating the required credential secrets, define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -:

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-medworkup \
  | kubectl apply -f - -n $namespace

Note: You can create a namespace using kubectl create namespace $namespace.

Verify Deployment#

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready. On first run, MedCAT and MedGemma models are downloaded automatically and may take some time to become ready.

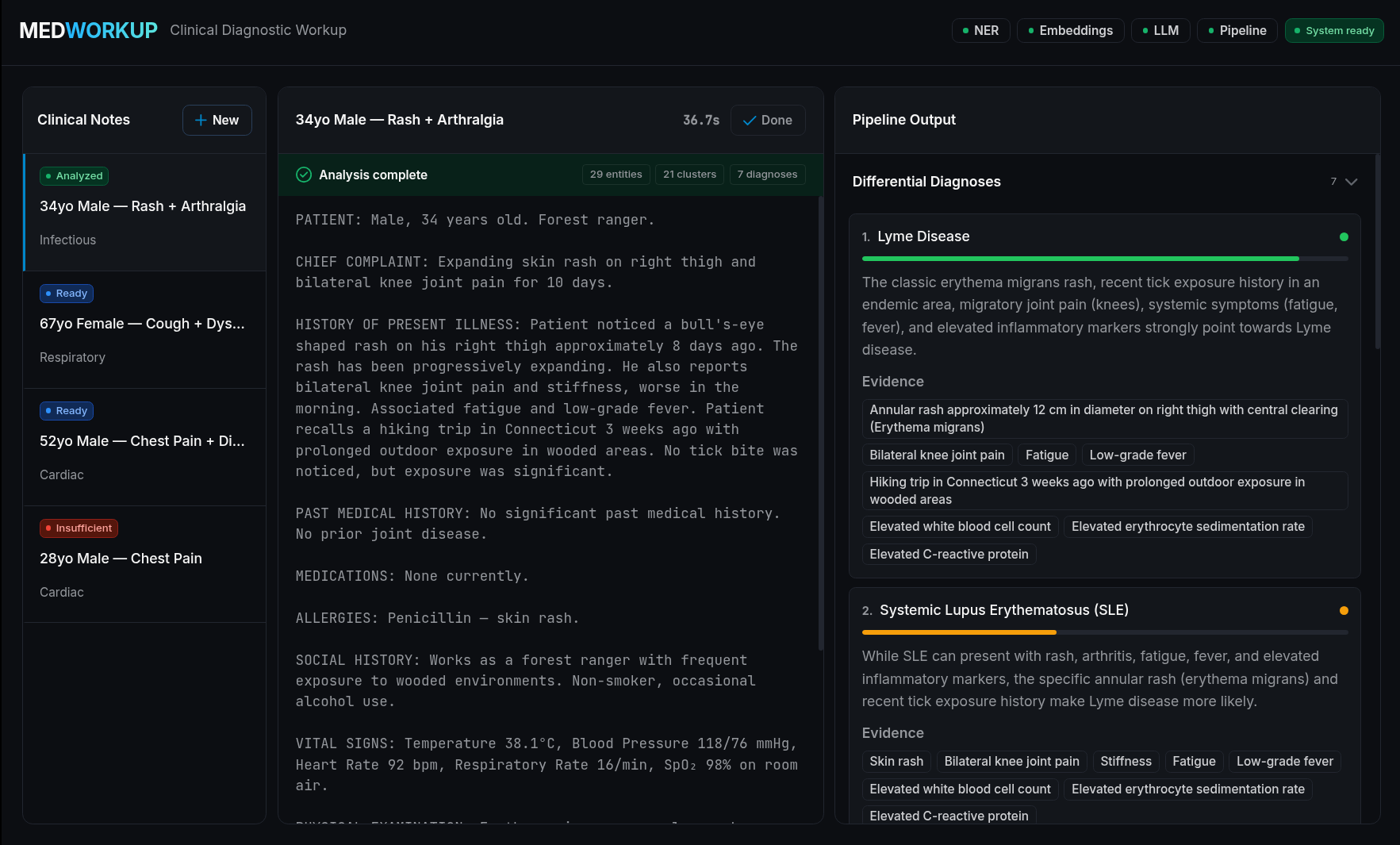

Connect to UI#

To connect to the UI, port-forward to port 8080. The UI will then be available at http://localhost:8080 in your browser.

kubectl port-forward services/$name-aimsb-medworkup-ui 8080:8080 -n $namespace

Clean Up#

When you are finished, remove the deployed resources using the same deployment command, with kubectl delete instead of kubectl apply:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-medworkup \
  | kubectl delete -f - -n $namespace

Pipeline API#

The orchestrator exposes a JSON API:

Request#

POST /analyze
Content-Type: application/json

{
  "text": "Patient presents with fever, productive cough, and shortness of breath. SpO2 94%. CXR shows consolidation."
}

Response#

{
  "diagnoses": [
    {
      "name": "Community-acquired pneumonia",
      "confidence": 0.87,
      "evidence": ["fever", "productive cough", "SpO2 94%", "CXR consolidation"],
      "reasoning": "..."
    }
  ],
  "entities_raw": [...],
  "entities_normalized": [...],
  "categorized_entities": { ... },
  "pipeline_meta": { ... }
}

Health Endpoints#

Endpoint	Description
`GET /health`	Fast liveness probe (no downstream calls)
`GET /sys/health`	Full system health — probes all downstream services concurrently
`GET /pipeline`	Describe pipeline stages and their service dependencies
`GET /docs`	Interactive Swagger UI

Model Loading Modes#

The NER and Embedding services support two model loading modes:

HuggingFace Mode (default)#

Models are downloaded from HuggingFace Hub on first startup and cached in a persistent volume. Requires HUGGING_FACE_HUB_TOKEN.

ONNX Mode#

Pre-downloaded model artifacts are mounted from a local directory. No network access required at runtime. Faster startup.

Configure via NER_ONNX_PATH and EMBEDDING_ONNX_PATH environment variables (see values.yaml or .env.example).

Third-Party Components#

This Solution Blueprint utilizes multiple components. For third-party license information, refer to each component’s documentation. Key third-party components can be seen below:

Component	License
MedGemma	Health AI Developer Foundations Terms of Use
MedCAT	Elastic License 2.0
GLiNER-BioMed	Apache 2.0
SapBERT	Apache 2.0
FastAPI	MIT
React	MIT
nginx	BSD-2-Clause

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party software and materials used within the Solution Blueprint are governed by their respective licenses.
