LLM-Chat

Overview

Chatting with an LLM is often a good way to perform an initial evaluation. This is a sanity check that lets us quickly get a feel for what the LLM is capable of and what style of responses it tends to generate. Even before standardized test suites, we can explore prompting techniques and understand model behavior.

This Solution Blueprint combines two parts:

• The open-source OpenWebUI chat application. Open WebUI is a third‑party open-source project; trademarks belong to their respective owners.

• The user’s chosen AIM deployed alongside it.

AMD Solution Blueprints are packaged as Helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

Architecture

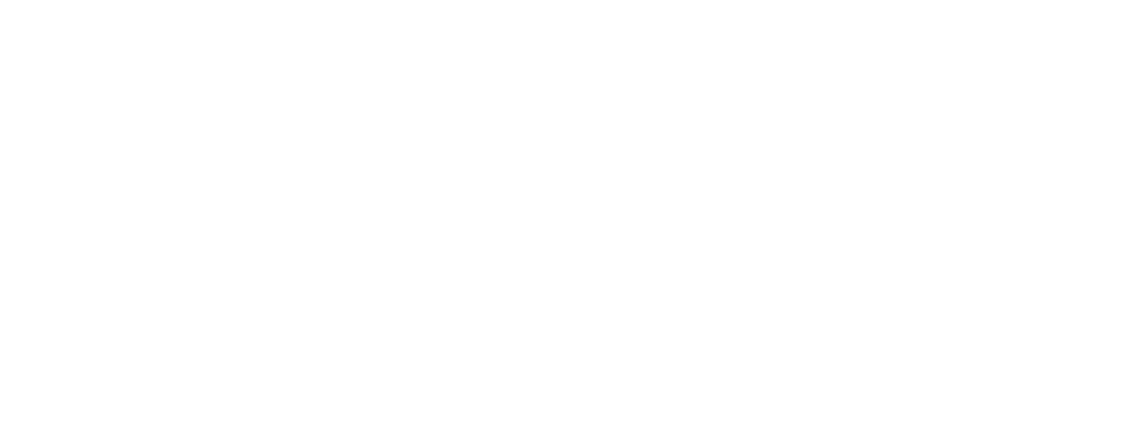

The blueprint integrates OpenWebUI with an AIM LLM service.

Component	Role
OpenWebUI	Web chat interface and configuration
AIM LLM	Inference for chat completions (default: Llama 3.1 8B)

Key Features

• A feature-rich, user-friendly LLM chat platform provided by the open-source OpenWebUI

• Flexible AIM deployment:

  • AIM LLMs provide a robust, scalable inference runtime that is optimized for AMD hardware.

• Talk with the AIM in a back-and-forth classic chat interface and get access to a wide array of inference parameters like the system prompt, temperature and various other constraints.

Getting Started

This is a quick start guide on how to deploy the blueprint. For advanced options, such as reusing an existing AIM, providing a Hugging Face token, or overriding storage classes, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

Prerequisites

System Requirements

This blueprint can be deployed on AMD Instinct (default), AMD EPYC, and AMD Radeon. The blueprint requires the following cluster resources by default, depending on the hardware being used:

Resource	Instinct	Radeon	EPYC
GPUs	1	1	—
CPUs	5 CPU cores	5 CPU cores	189 CPU cores
RAM	68 Gi	36 Gi	132 Gi

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

• kubectl: Installed and configured to communicate with the cluster

• Helm 3.17 or higher: Installed on your local machine

Deployment

For advanced deployment options, explore the advanced deployment guide. Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -.

Find the deployment command below. Note: You can create a namespace using kubectl create namespace <my-namespace>.

Instinct

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-llm-chat \
  | kubectl apply -f - -n $namespace

EPYC

EPYC runs the model on CPU (gpus=0, bf16, AIM_ALLOW_UNOPTIMIZED=true), sized via llm.cpus/llm.memory. The default EPYC AIM is a gated image, so provide a Hugging Face token through a Secret.

name="my-deployment"
namespace="my-namespace"
kubectl create namespace $namespace
kubectl create secret generic hf-token --from-literal=hf-token=<YOUR_HF_TOKEN> -n $namespace

helm pull oci://registry-1.docker.io/amdenterpriseai/aimsb-llm-chat --untar
helm template $name ./aimsb-llm-chat \
  --set global.platform=epyc \
  --set llm.cpus=188 \
  --set llm.memory=128 \
  --set llm.env_vars.HF_TOKEN.name=hf-token \
  --set llm.env_vars.HF_TOKEN.key=hf-token \
  | kubectl apply -f - -n $namespace

Performance note: On multi-socket EPYC nodes, configure the kubelet for NUMA alignment (CPU Manager static, Topology Manager single-numa-node, Memory Manager Static); otherwise the LLM’s CPUs and memory can land on different NUMA nodes and vLLM runs effectively single-threaded.

Radeon

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-llm-chat \
  --set global.platform=radeon \
  | kubectl apply -f - -n $namespace

Verify Deployment

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready.

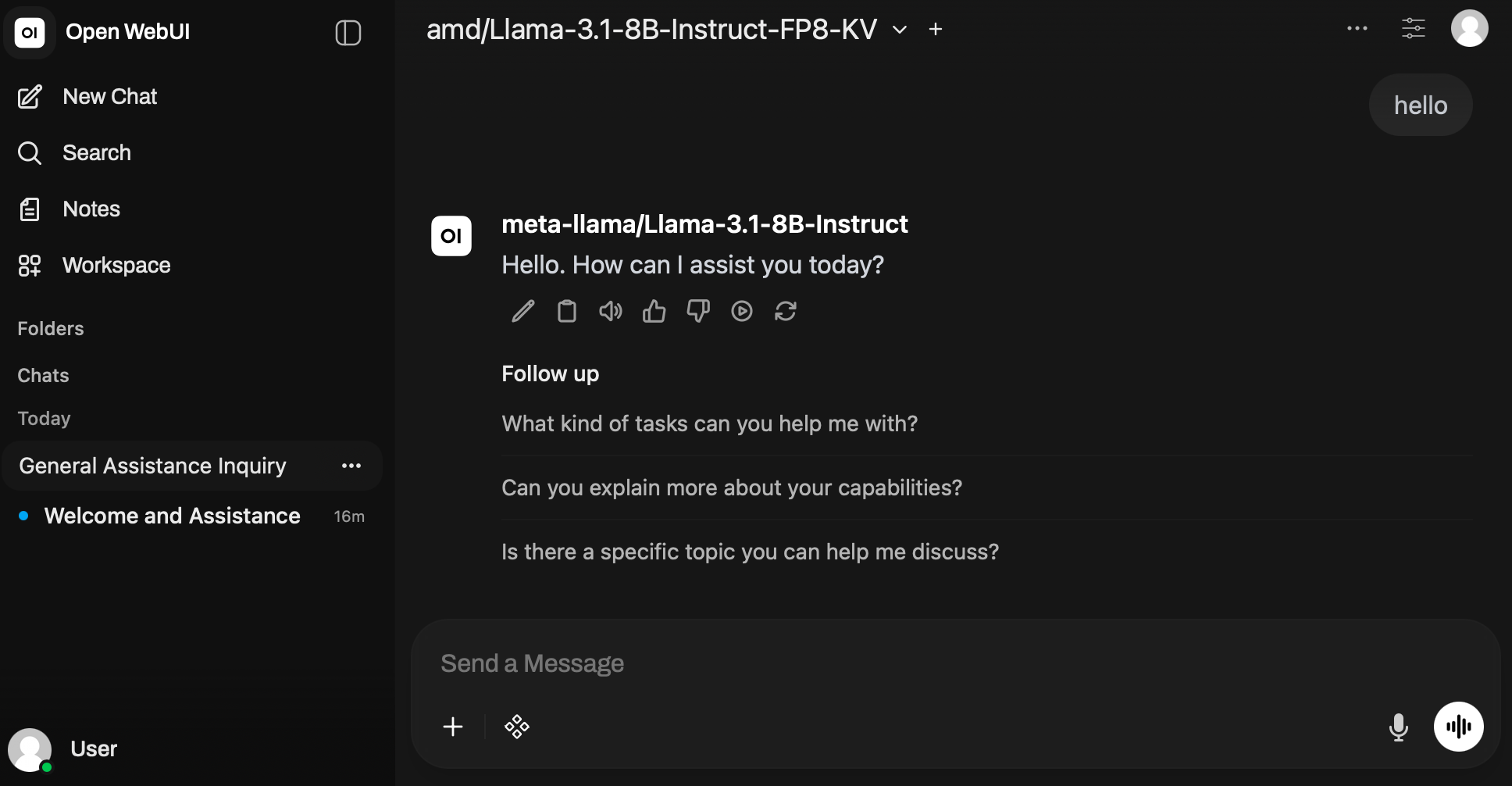

Connect to UI

To connect to the UI, port-forward to 8080. The UI will then be available at http://localhost:8080 in your browser.

kubectl port-forward services/aimsb-llm-chat-${name} 8080:80 -n $namespace

Once connected, use the application as follows:

1. Open the chat interface in your browser

2. Adjust inference settings as needed (for example, system prompt and temperature)

3. Send messages and review the model’s responses

Clean Up

When you are finished, remove the deployed resources using the same deployment command, with kubectl delete instead of kubectl apply. For example, for Instinct use the following command:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-llm-chat \
  | kubectl delete -f - -n $namespace

Third-Party Components

To see the full set of software and Python dependencies, explore the repository source and dependency files. The table below lists key components only. For further license information, refer to each component’s official documentation.

Component	License
OpenWebUI	License

Terms of Use

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party Software and Materials used within the Solution Blueprints are governed by their respective licenses.
