Report Generation Engine

Report Generation Engine#

Overview#

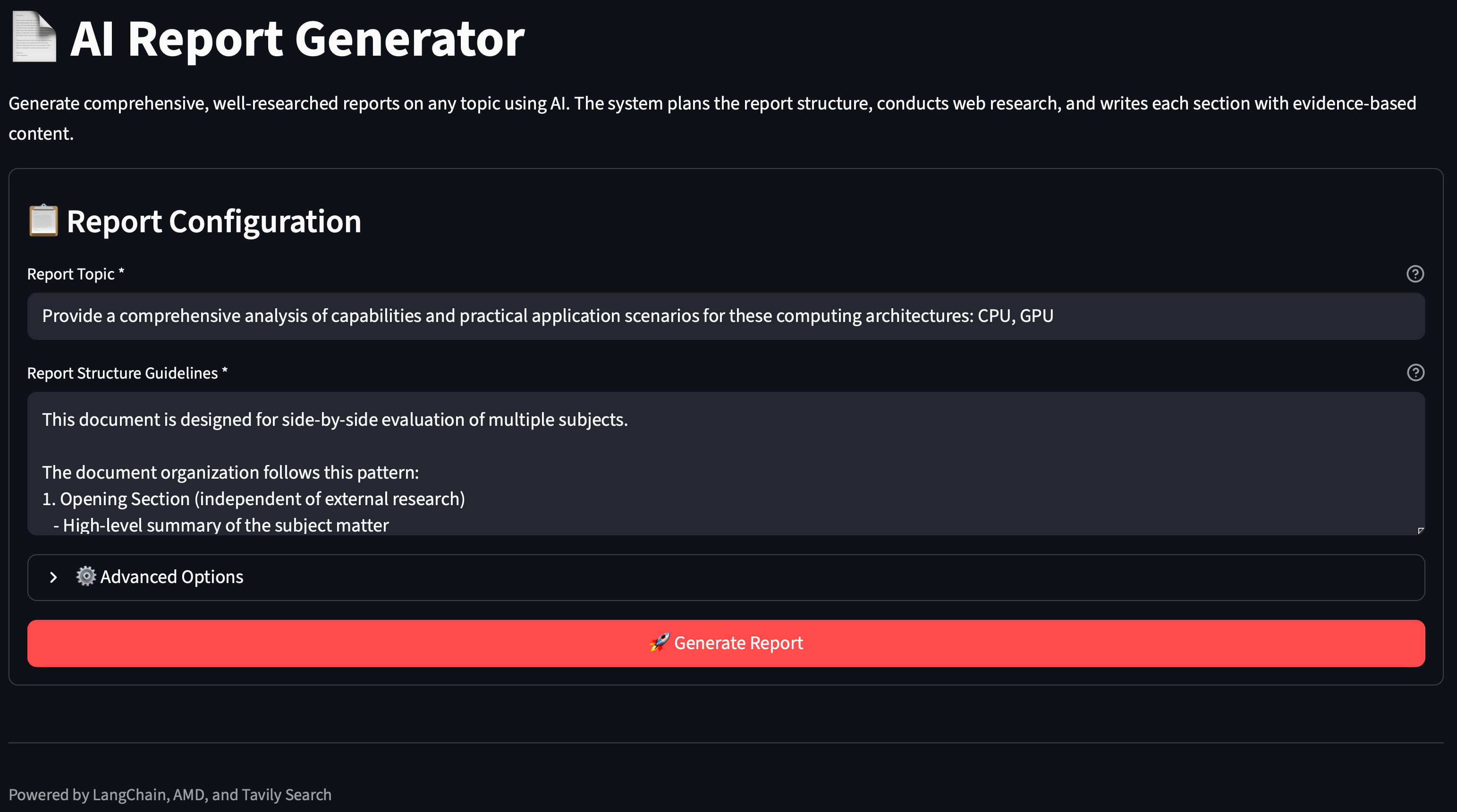

Report Generation Engine UI

This Solution Blueprint illustrates how automated technical report generation can be implemented using AIMs. It employs a multi-stage LLM workflow with integrated web research, where the system plans, researches, writes, and compiles content to produce comprehensive, evidence-based technical documents on any topic.

The blueprint follows a four-stage pipeline:

Planning: Generates search queries and creates a section outline
Research: Conducts parallel web searches via the Tavily API
Writing: Generates content for each section using the gathered research
Compilation: Assembles the final markdown report with introduction and conclusion

AMD Solution Blueprints are packaged as Helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

Architecture#

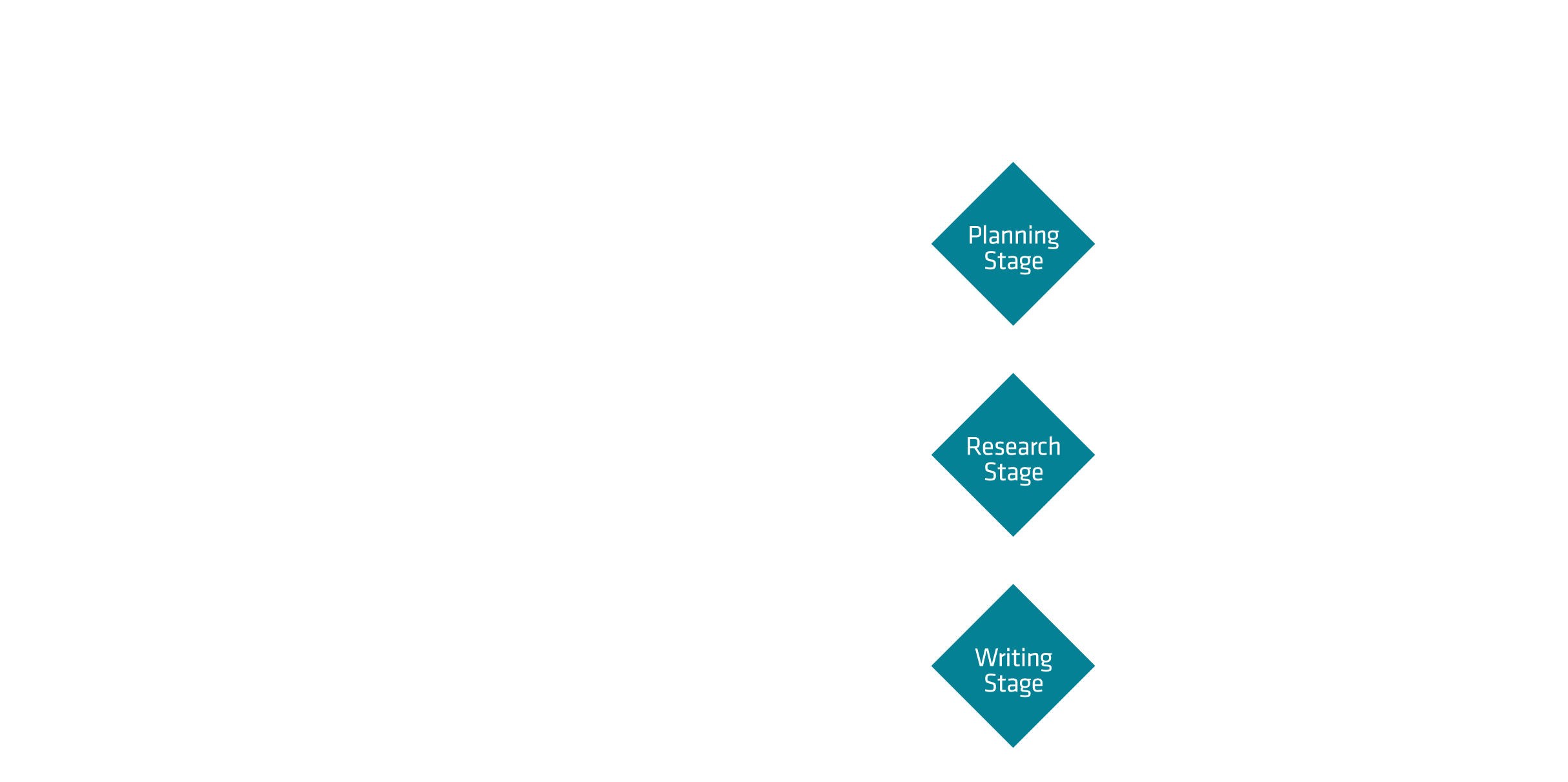

Report generation is performed by a four-stage pipeline with LLM and web research integration.

The blueprint integrates a Streamlit web UI, a FastAPI backend, an AIM LLM service, and Tavily web search. LangChain orchestrates the multi-stage workflow across planning, research, writing, and compilation.

Component	Role
Streamlit	Web-based user interface
FastAPI	REST API backend
AIM (LLM)	Technical writing and synthesis (default: Llama 3.3 70B Instruct)
LangChain	Orchestration of LLM calls
Tavily API	Web search for research integration

Key Features#

Generates comprehensive technical reports on any user-provided topic
Users can customize the report structure or use intelligent defaults
Real-time progress tracking shows each stage of the generation process
Web research results are automatically integrated and cited in the final report

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options, such as reusing an existing AIM, configuring search parameters, or overriding storage classes, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

Prerequisites#

System Requirements#

This blueprint can be deployed on AMD Instinct (default), AMD Radeon, and AMD EPYC. The blueprint requires the following cluster resources by default, depending on the hardware being used:

Resource	Instinct	Radeon	EPYC
GPUs	1	1	—
CPUs	2 CPU cores	2 CPU cores	189 CPU cores
RAM	68 Gi	36 Gi	132 Gi

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

kubectl: Installed and configured to communicate with the cluster
Helm 3.17 or higher: Installed on your local machine
Tavily API key for web search integration (free tier: 1,000 requests/month)

Deployment#

For advanced deployment options, explore the advanced deployment guide. Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and namespace (Kubernetes namespace), set config.tavily.apiKey to your Tavily API key, then pipe the output of helm template to kubectl apply -f -.

Find the deployment command below.

Note: You can create a namespace using kubectl create namespace <my-namespace>.

Instinct

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-report-generation-engine \
  --set config.tavily.apiKey=tvly-your-key-here \
  | kubectl apply -f - -n $namespace

EPYC

EPYC runs the model on CPU (gpus=0, bf16, AIM_ALLOW_UNOPTIMIZED=true), sized via llm.cpus/llm.memory. The default EPYC AIM is a gated image, so provide a Hugging Face token through a Secret.

name="my-deployment"
namespace="my-namespace"
kubectl create namespace $namespace
kubectl create secret generic hf-token --from-literal=hf-token=<YOUR_HF_TOKEN> -n $namespace

helm pull oci://registry-1.docker.io/amdenterpriseai/aimsb-report-generation-engine --untar
helm template $name ./aimsb-report-generation-engine \
  --set config.tavily.apiKey=tvly-your-key-here \
  --set global.platform=epyc \
  --set llm.cpus=188 \
  --set llm.memory=128 \
  --set llm.env_vars.HF_TOKEN.name=hf-token \
  --set llm.env_vars.HF_TOKEN.key=hf-token \
  | kubectl apply -f - -n $namespace

Performance note: On multi-socket EPYC nodes, configure the kubelet for NUMA alignment (CPU Manager static, Topology Manager single-numa-node, Memory Manager Static); otherwise the LLM’s CPUs and memory can land on different NUMA nodes and vLLM runs effectively single-threaded.

Radeon

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-report-generation-engine \
  --set config.tavily.apiKey=tvly-your-key-here \
  --set global.platform=radeon \
  | kubectl apply -f - -n $namespace

Verify Deployment#

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready.

Connect to UI#

To connect to the UI, port-forward to 8501. The UI will then be available at http://localhost:8501 in your browser.

kubectl port-forward services/aimsb-report-generation-engine-${name} 8501:8501 -n $namespace

Enter a topic, optionally customize the report structure, and start generation. Progress is shown for each pipeline stage.

Clean Up#

When you are finished, remove the deployed resources using the same deployment command, with kubectl delete instead of kubectl apply. For example, for Instinct use the following command:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-report-generation-engine \
  | kubectl delete -f - -n $namespace

Third-party Components#

This Solution Blueprint utilizes multiple components. For third-party license information, refer to each component’s documentation. Key third-party components are listed below.

Component	License
FastAPI	MIT
LangChain	MIT
Streamlit	Apache 2.0

Tavily API: Web search API for research integration

Website: https://tavily.com
Terms of Use: https://tavily.com/terms-of-service
License: Commercial API service; requires API key

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party software and materials used within the Solution Blueprints are governed by their respective licenses.
