Fintech Fraud Detection

Fintech Fraud Detection#

Overview#

This blueprint demonstrates a real-time financial transaction fraud detection system running on AMD GPUs in Kubernetes. It combines a Graph Neural Network (GNN) and an XGBoost ensemble with a deterministic rules engine to score transactions and classify them as legitimate, requiring review, or fraudulent. A streaming demo UI replays a prepared transaction dataset in the browser at configurable speed, showing live fraud decisions, metrics, and financial impact totals.

The system is trained and evaluated on the IEEE-CIS Fraud Detection dataset (590,540 transactions with a temporal 80/20 train/validation split by TransactionDT).

AMD Solution Blueprints are packaged as helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

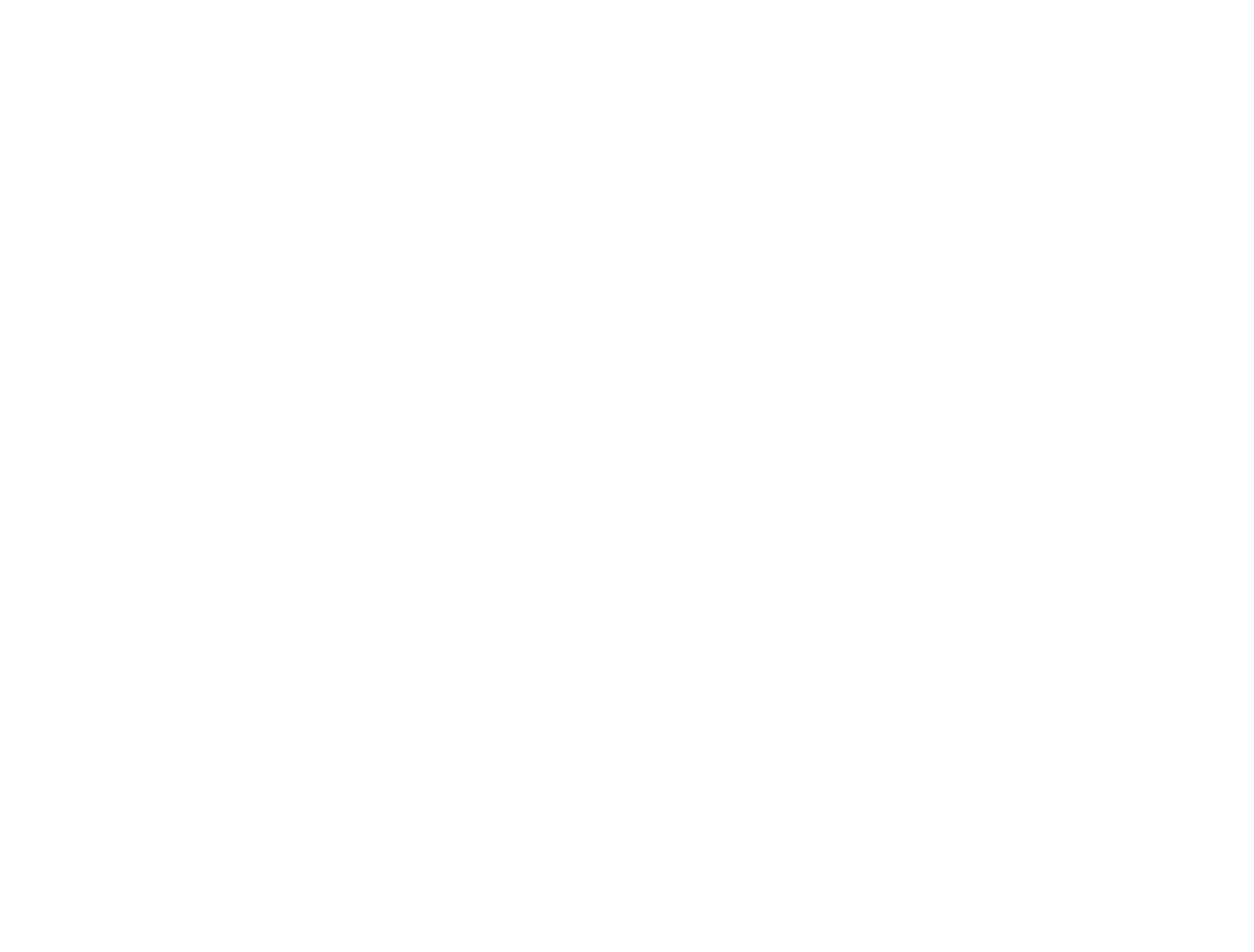

Architecture#

External traffic reaches the middleware on port 8080 via kubectl port-forward or a Gateway API HTTPRoute (when http_route.enabled=true).

Components#

Component	Folder	Role
GNN Service	`backend/gnn/`	BentoML service running on AMD GPU. Accepts raw transaction features and graph edge context, returns fraud logits and embeddings. Exposed at `:3000`.
XGBoost Service	`backend/xgb/`	BentoML service running on AMD GPU. Accepts raw features and GNN embeddings, returns calibrated fraud probabilities. Exposed at `:3001`.
Backend Orchestrator	`backend/`	FastAPI service. Runs the rules engine first, then dispatches to GNN and/or XGBoost depending on the scoring mode. Exposes `GET /health`, `POST /score`, `POST /score/batch`. Runs at `:8000`.
Middleware	`middleware/`	FastAPI service. Downloads and holds the transaction dataset in memory, streams scored rows to the browser via Server-Sent Events, and exposes stream control endpoints (start/pause/stop). Runs at `:8080`.
Frontend	`frontend/`	React + TypeScript UI built with Vite, served as static files from the middleware container. Shows a live transaction feed, per-rule breakdowns, and financial impact metrics.

Key Features#

GNN + XGBoost ensemble — the GNN extracts graph-structural embeddings derived from card number and email domain relationships, which feed XGBoost as additional features. This improves detection of coordinated fraud patterns that look legitimate in isolation.
Deterministic rules engine — rules R005–R024 cover duplicate transactions (BLOCK), card testing sequences (BLOCK), anomalous amounts (REVIEW), new device and large amount combinations (REVIEW), country changes (REVIEW), unusual hours (REVIEW), many recipients (REVIEW), amount splitting (MONITOR), round amounts (MONITOR), new accounts (MONITOR), frequent transactions (MONITOR), and unusual channels (MONITOR). Hard-block rules short-circuit ML scoring entirely.
Three scoring modes: xgb_ensemble (GNN embeddings → XGBoost, highest accuracy), gnn_only (GNN direct softmax), graph (GNN with rolling neighbor context).
Live streaming demo — the middleware replays the IEEE-CIS validation split at configurable speed; the frontend shows decisions, rule breakdowns, accuracy %, missed fraud USD, and false positive USD in real time.
Batch scoring — the backend /score/batch endpoint accepts arrays of transactions for offline evaluation.
Configurable decision threshold — transactions with fraud_probability ≥ threshold (default 0.5) are classified FRAUD; below threshold they are NOT_FRAUD (unless a rules engine hard-block fires first).

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options, such as providing a Hugging Face token, or overriding storage classes, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

Prerequisites#

kubectl: Installed and configured to communicate with the cluster
Helm 3.16 – 4.2.0: Installed on your local machine
Kubernetes cluster with at least 2 AMD GPUs (ROCm 7.1.1+) and the AMD GPU device plugin installed
A default StorageClass that can provision ReadWriteOnce volumes (9 Gi total across three PVCs)
A Hugging Face token (Read access) — see DEPLOYMENT.md for the repositories to access and the Secret to create

System Requirements#

This blueprint can be deployed on AMD Instinct. The blueprint requires the following cluster resources by default:

Resource	Requirement
AMD GPUs	2 (one for GNN service, one for XGBoost service)
GPU type	AMD ROCm-capable GPU (validated with ROCm 7.1.1)
Kubernetes	1.26+ with the AMD GPU device plugin (`amd.com/gpu` resource)
CPU	8+ cores recommended across all pods
Memory	18+ Gi total (GNN: 8 Gi, XGB: 4 Gi, Backend: 4 Gi, Middleware: 2 Gi)
Storage	9+ Gi across three PVCs (GNN artifacts: 4 Gi, XGB artifacts: 4 Gi, transaction data: 1 Gi)
StorageClass	A default StorageClass that supports `ReadWriteOnce`
Network	Outbound HTTPS to `huggingface.co` (initContainers download artifacts on first start)

The GNN and XGBoost services will not schedule without an AMD GPU. If GPUs are unavailable, remove the amd.com/gpu: "1" resource requests in values.yaml to allow CPU-only scheduling — inference will be significantly slower.

Deployment#

For advanced deployment options, explore the advanced deployment guide. Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -.

Find the deployment command below. Note: You can create a namespace using kubectl create namespace <my-namespace>.

This blueprint downloads its model artifacts and transaction data from Hugging Face at startup. Create the hf-token secret before deploying, see DEPLOYMENT.md for details.

name="my-deployment"
namespace="my-namespace"
kubectl create secret generic hf-token --from-literal=hf-token=<YOUR_HF_TOKEN> -n $namespace

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-fintech-fraud-detection \
  | kubectl apply -f - -n $namespace

Verify Deployment#

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready.

Connect to UI#

To connect to the UI, port-forward to 8080. The UI is then available at http://localhost:8080 in your browser.

kubectl port-forward svc/$name-aimsb-fintech-fraud-detection-middleware 8080:8080 -n $namespace

Clean Up#

When you are finished, remove the deployed resources using the same deployment command, with kubectl delete instead of kubectl apply:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-fintech-fraud-detection \
  | kubectl delete -f - -n $namespace

Throughput and Latency#

Measured on the reference cluster (AMD ROCm-capable GPU) via the /score/batch endpoint with 5 000 transactions from the IEEE-CIS dataset (3-run average):

Mode	Throughput	Avg latency / tx	Notes
`gnn_only`	~600 tx/s	~1.7 ms	GNN softmax head only
`xgb_ensemble`	~570 tx/s	~1.7 ms	GNN embeddings → XGBoost; highest accuracy

Does the streaming UI affect throughput? No. The live demo UI streams pre-scored rows from the middleware at a configurable replay rate (default 750 ms between rows) and calls the backend /score endpoint one transaction at a time on behalf of the stream. It runs independently of the /score/batch endpoint and does not compete for GPU resources at scale. For high-volume production use, send requests directly to /score/batch and ignore the streaming demo.

These numbers were measured through a kubectl port-forward tunnel and include round-trip network overhead. Direct cluster-to-service throughput will be higher.

Model Compatibility#

For how the GNN and XGBoost models were trained and exported, see Model Training.

The GNN model requires a minimum capability level of hidden channels ≥ 128 and embedding dimension ≥ 32 to produce meaningful fraud embeddings. The reference configuration uses hidden_channels: 160 and embed_dim: 64 (see backend/config.yaml).

Using a smaller or undertrained model degrades detection quality:

A model trained for too few epochs may produce near-constant embeddings, causing XGBoost to rely only on raw features (equivalent to gnn_only mode but with no accuracy benefit from the ensemble).
A model with mismatched architecture dimensions will fail at inference time with a shape mismatch error in the XGBoost feature vector.

The XGBoost model is trained on the combined feature set (raw transaction fields + GNN embeddings). It must be retrained whenever the GNN architecture changes.

Configuration Options#

Scoring mode#

The backend /score endpoint accepts a mode query parameter:

Mode	Description
`xgb_ensemble` (default)	GNN extracts embeddings → XGBoost scores on raw features + embeddings
`gnn_only`	GNN softmax probability only, no XGBoost pass
`graph`	Like `gnn_only` but includes rolling neighbor graph context per transaction

Decision threshold#

Configured in backend/config.yaml under eval.threshold (default 0.5). The CombinedPredictor applies this threshold to fraud_probability when determining the FRAUD / NOT_FRAUD decision. Transactions matched by a hard-block rule always return FRAUD regardless of threshold.

Stream speed and row cap#

middleware.streamIntervalMs (default 750 ms) controls how fast transactions are replayed in the UI. middleware.maxDemoRows (default 20000) caps how many rows are loaded into memory at startup. At 750 ms per row, 20,000 rows provides approximately 4 hours of continuous demo playback while keeping memory usage under 2 Gi.

Model service URLs and tokens#

When the chart deploys the GNN and XGBoost pods itself, GNN_MODEL_URL and XGB_MODEL_URL are wired automatically to the in-cluster services. When pointing to external services, set them explicitly via:

env_vars.backend.GNN_MODEL_URL
env_vars.backend.GNN_API_TOKEN
env_vars.backend.XGB_MODEL_URL
env_vars.backend.XGB_API_TOKEN

Example Scenarios#

Live streaming demo#

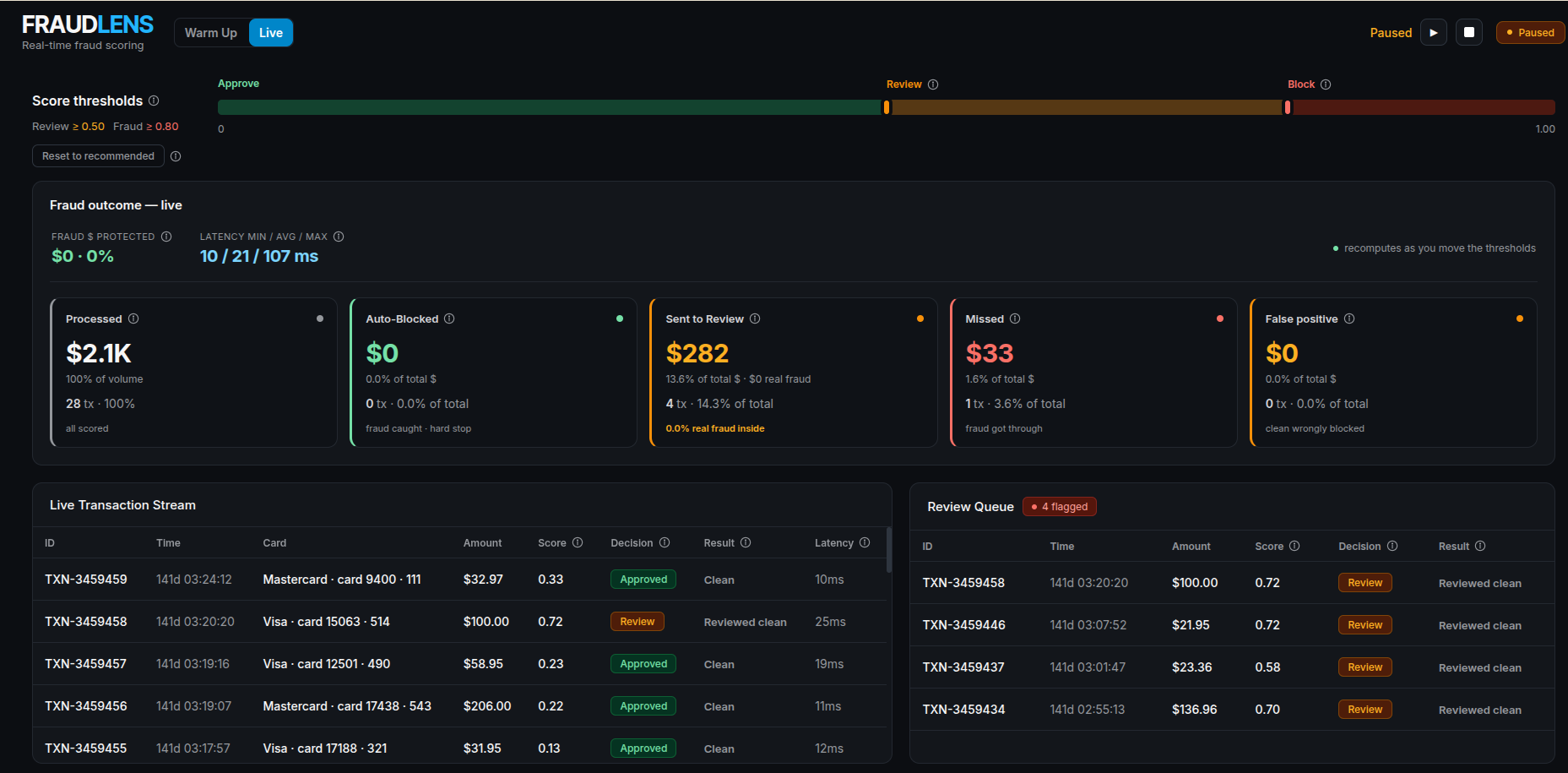

After deployment, port-forward to the middleware and open http://localhost:8080 in a browser. Click ▶ Start on the Live tab. Transactions from the IEEE-CIS validation split are replayed at ~750 ms each. The top panel shows a live feed with per-transaction decisions (NOT_FRAUD / REVIEW / FRAUD). The metrics panel accumulates accuracy %, missed fraud dollar value, and false positive dollar value as the stream runs.

Rule firings are shown alongside each transaction. For example, a transaction matching R005 (duplicate transaction ID) is blocked immediately without invoking GNN or XGBoost.

Batch evaluation#

# Requires port-forward to backend on :8000
curl -X POST http://localhost:8000/score/batch \
  -H "Content-Type: application/json" \
  -d '[{"TransactionAmt": 150.0, "card1": 12345}, {"TransactionAmt": 9.99}]'

Returns an array of score results, one per input transaction, each with fraud_probability, decision, and rules_matched.

Scoring a single transaction#

curl -X POST "http://localhost:8000/score?mode=xgb_ensemble" \
  -H "Content-Type: application/json" \
  -d '{"TransactionAmt": 5000.0, "card1": 99999, "addr1": 123}'

Third-Party Components#

Component	License	Purpose
BentoML	Apache 2.0	ML model serving framework for GNN and XGBoost inference services
XGBoost	Apache 2.0	Gradient boosting library for the ensemble fraud classifier
PyTorch Geometric	MIT	Graph neural network implementation
PyTorch	BSD-style	Deep learning backend for GNN training and inference
FastAPI	MIT	Web framework for the backend orchestrator and middleware
React	MIT	Frontend UI framework
HuggingFace Hub	Apache 2.0	Model and dataset artifact hosting and download
IEEE-CIS Fraud Detection dataset	Kaggle competition rules	Transaction data used for training and demo replay

Use of the IEEE-CIS dataset is subject to the Kaggle competition rules. The dataset is not included in this repository and must be downloaded separately via HuggingFace Hub.

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party software and materials used within the Solution Blueprint are governed by their respective licenses.

This blueprint is provided for demonstration purposes. It is trained on the publicly available IEEE-CIS Fraud Detection dataset and is not intended for direct production deployment without further validation, bias assessment, and regulatory compliance review.
