Agentic RAG#

Overview#

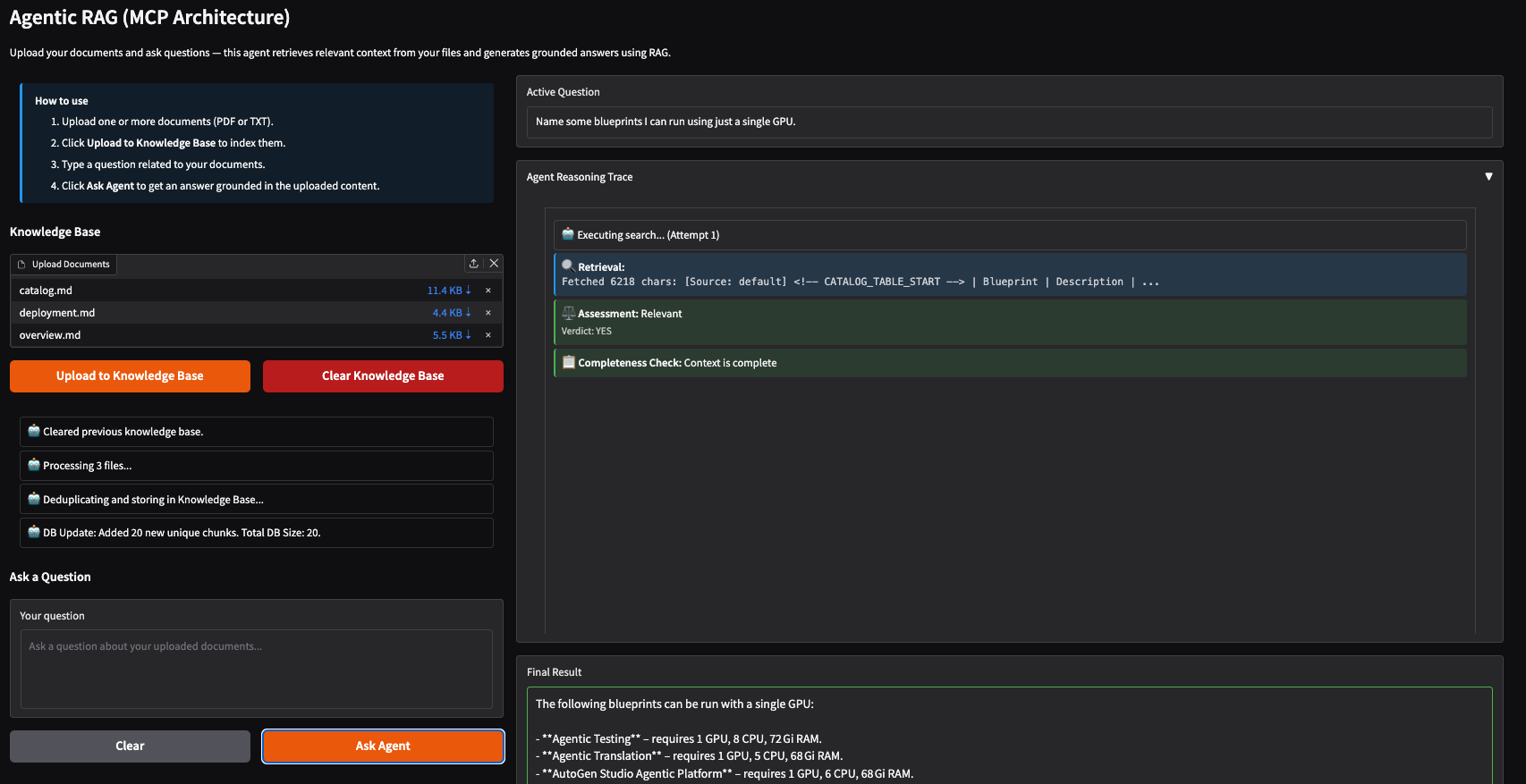

Agentic RAG UI

This Solution Blueprint is an AI-powered document Q&A system that uses a LangGraph agent with Model Context Protocol (MCP) for modular, tool-based retrieval. The agent interprets user questions, iteratively searches a vector knowledge base via MCP tool calls, grades the retrieved context for relevance, and synthesizes a final answer using an LLM.

The architecture separates the reasoning agent from the data tools, allowing for a more modular and scalable deployment.

To summarize, the system consists of:

  • MCP Server: Handles document embeddings, vector storage (ChromaDB), and retrieval tools.

  • RAG Agent: The user interface and reasoning engine that connects to the MCP server to fetch context and generate answers.

AMD Solution Blueprints are packaged as helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

Architecture#

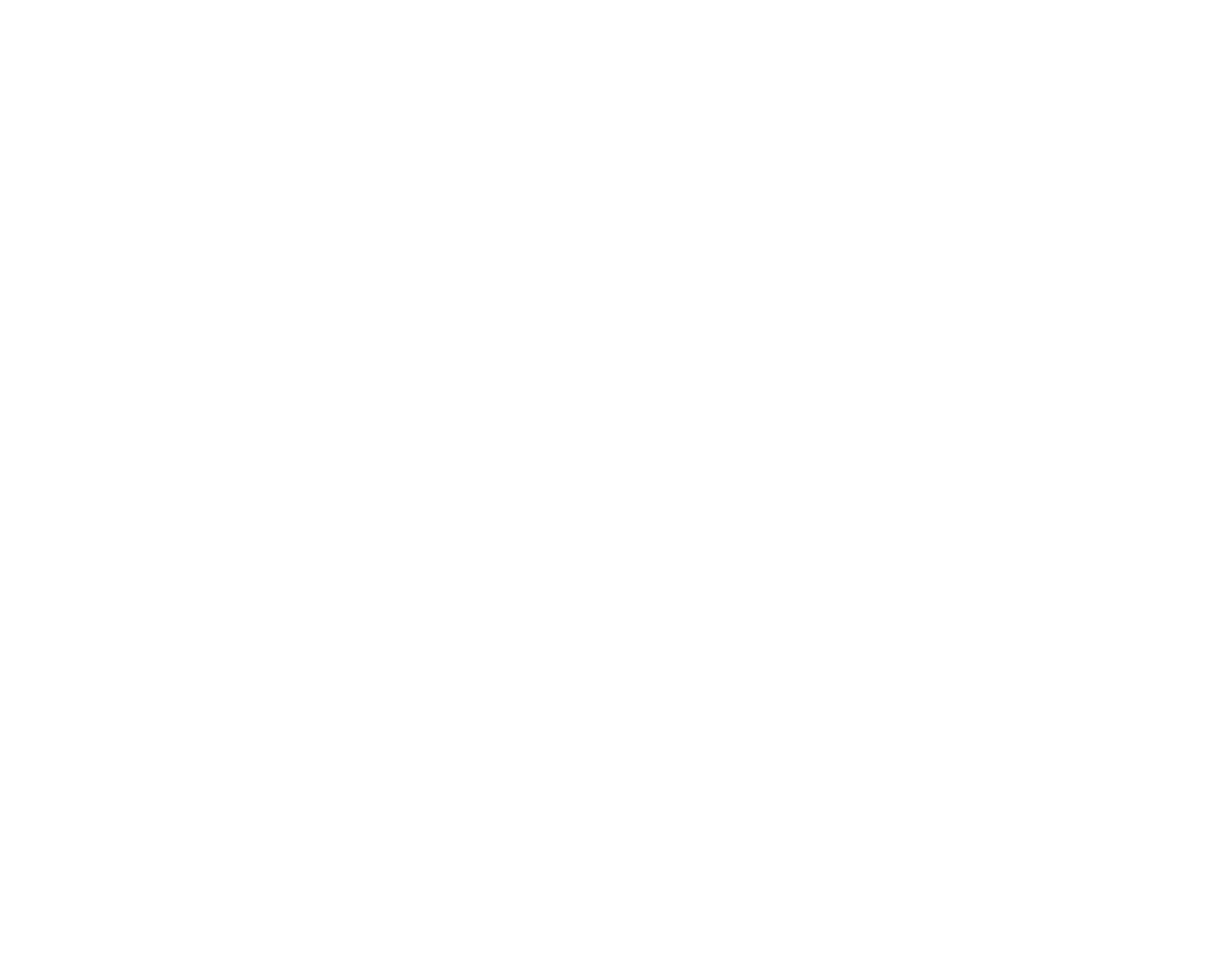

Agentic RAG consists of four components: an embedding server for embedding generation, a ChromaDB server for embedding storage and retrieval, an LLM server and a Gradio UI server for the application itself. Agentic RAG consists of four components: an embedding server for embedding generation, a ChromaDB server for embedding storage and retrieval, an LLM server and a Gradio UI server for the application itself.

The user uploads documents and asks questions through the Gradio web UI. Uploaded documents are chunked and indexed into ChromaDB via the MCP server. For each question, the RAG agent runs a LangGraph loop, reasoning with the LLM, retrieving relevant chunks through MCP tools, grading their relevance, and re-searching if needed, until a complete answer is assembled and streamed back to the UI.

Component

Role

LLM Service

OpenAI-compatible endpoint (AIM vLLM or external), used for reasoning, grading, and answer synthesis

MCP Server

Exposes document tools (build_knowledge_base, retrieve_documents, clear_database, get_database_stats) via Model Context Protocol over SSE

Gradio UI

Web interface for uploading documents and asking questions, with live trace output

RAG Agent

LangGraph state machine that orchestrates LLM and MCP interactions

Embedding Service

vLLM-based embedding server that generates vector embeddings for document chunks and queries

ChromaDB

Persistent vector store used for MMR-based semantic retrieval

Key Features#

  • Document ingestion from PDF and TXT files into a persistent vector knowledge base

  • Agentic retrieval loop: reason → search → grade → re-search until fully answered (max 3 searches)

  • Relevance grading and deduplication of retrieved chunks before answer synthesis

  • MCP-based tool separation: retrieval logic runs in an isolated pod, decoupled from the agent

  • Real-time streaming of agent reasoning trace and final answer to the UI

  • Connects to the MCP server via SSE transport with automatic tool discovery

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options, such as reusing an existing AIM, providing a Hugging Face token, or overriding storage classes, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

This blueprint supports AMD Instinct (default) and AMD Radeon platforms. The section below covers the default Instinct deployment. For Radeon deployment and other advanced options, see:

Prerequisites#

System Requirements#

The following cluster resources are required by default:

Resource

Default Configuration

GPUs

2

CPUs

13 CPU cores

RAM

272 Gi RAM

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

  • kubectl: Installed and configured to communicate with the cluster

  • Helm 3.17 or higher installed on your local machine

Deployment#

Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -:

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-agentic-rag \
  | kubectl apply -f - -n $namespace

Note: You can create a namespace using kubectl create namespace $namespace.

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready.

Connect to UI#

To connect to the UI, port-forward to any chosen port, e.g., 7860. The UI will then be available at http://localhost:7860 in your browser.

kubectl port-forward services/aimsb-agentic-rag-${name}-agent-app 7860:80 -n $namespace

Clean Up#

When you are finished, remove the deployed resources:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-agentic-rag \
  | kubectl delete -f - -n $namespace

Third-party Components#

This Solution Blueprint utilizes multiple components. For third-party license information, refer to each component’s documentation. Key third-party components are listed below.

Component

License

LangGraph

MIT

LangChain

MIT

MCP (Model Context Protocol)

MIT

FastMCP

Apache-2.0

Gradio

Apache-2.0

ChromaDB

Apache-2.0

vLLM

Apache-2.0

PyMuPDF

AGPL-3.0

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party software and materials used within the Solution Blueprints are governed by their respective licenses.
