Overview#

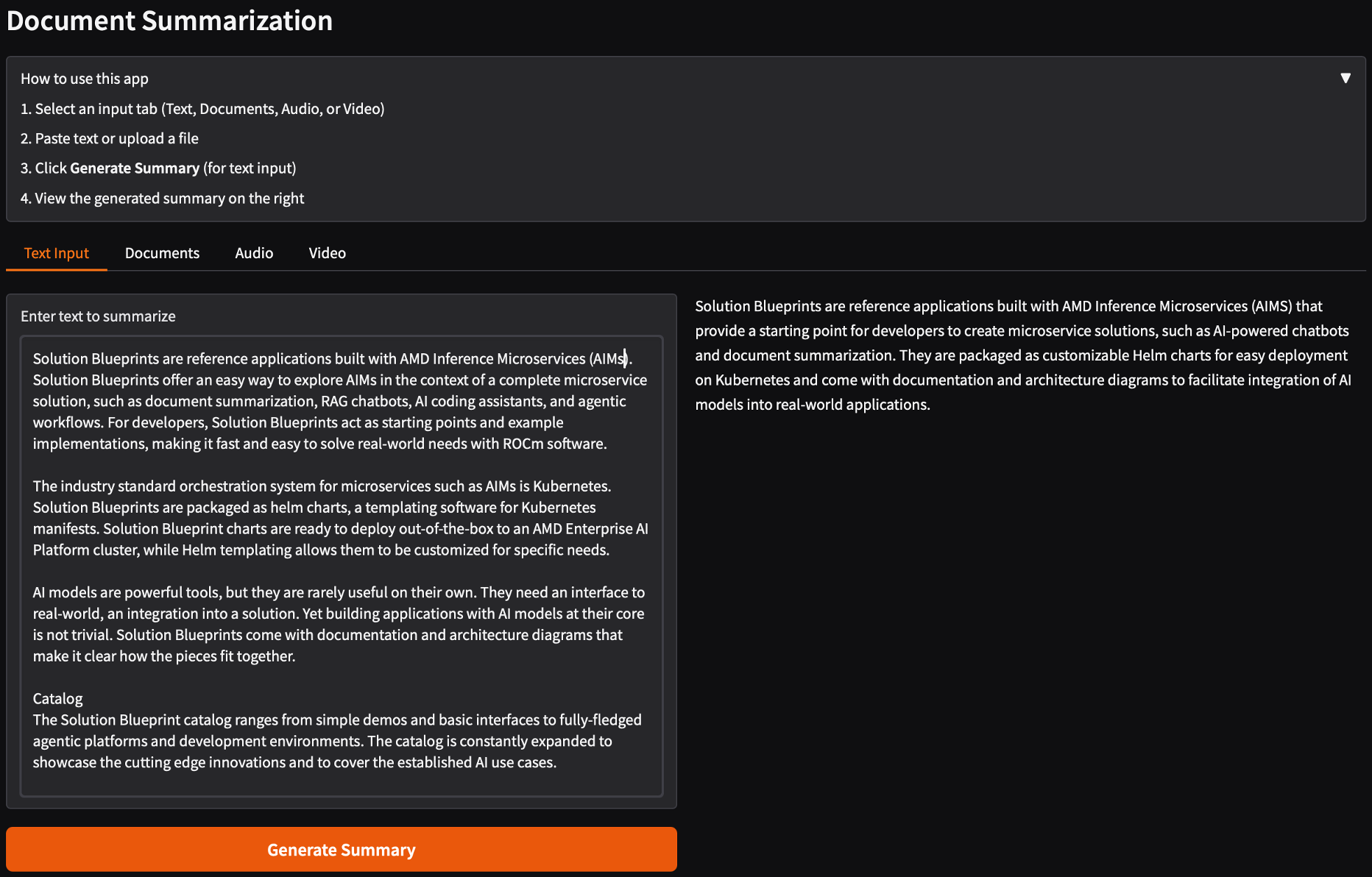

Document Summarization UI

The Document Summarization (DocSum) Solution Blueprint uses LLMs to generate summaries from varied document types. It can process and summarize PDFs, DOCX files and plain text, as well as multimedia files (both audio and video), across a variety of domains such as customer service, scientific research and legal text.

AMD Solution Blueprints are packaged as Helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

Architecture#

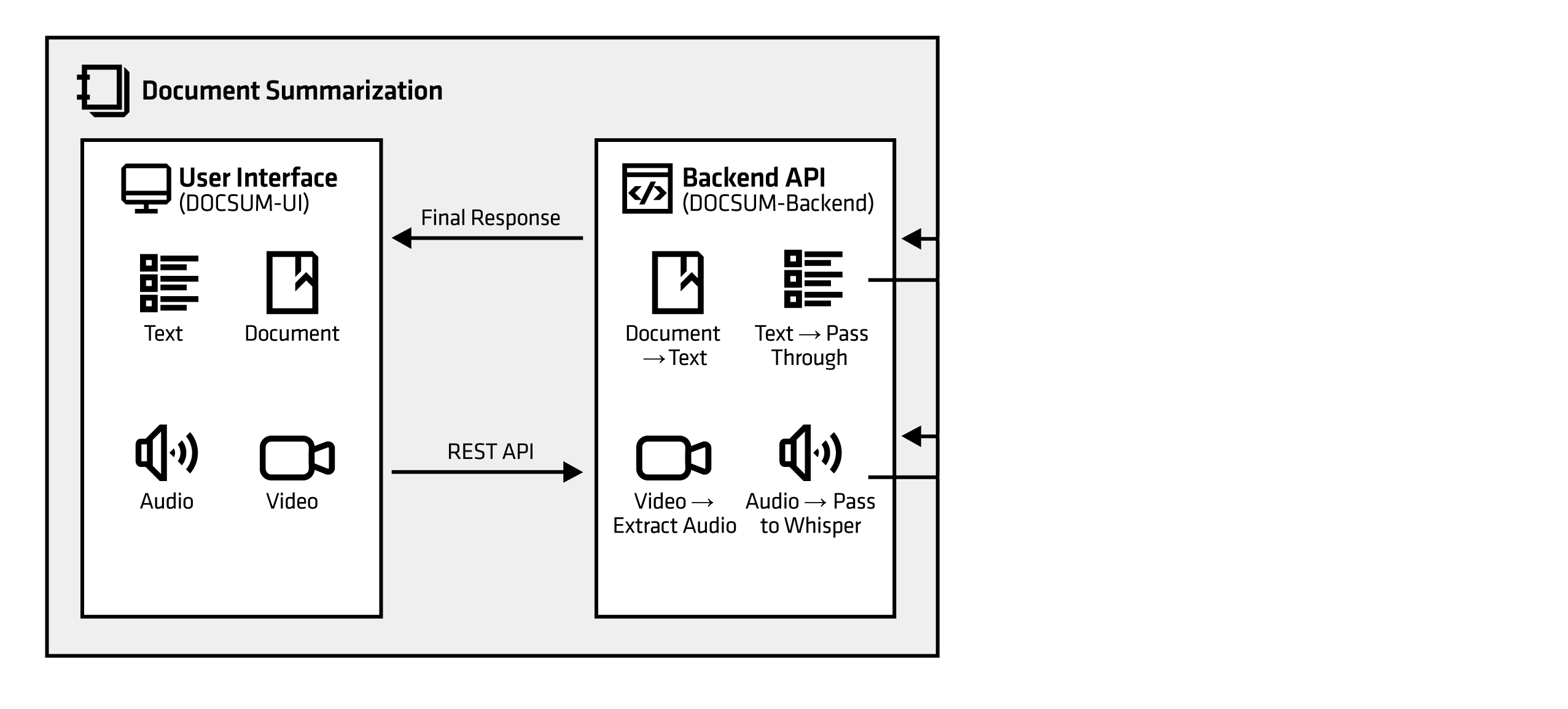

Document Summarization architecture on AMD AIM: UI, DocSum MegaService, Whisper ASR, and LLM backends. Document Summarization architecture on AMD AIM: UI, DocSum MegaService, Whisper ASR, and LLM backends.

Component

Role

User Interface

Web interface for uploads, URLs, and viewing summaries

Backend API

DOCSUM backend integration between components

Whisper

Automatic transcription for audio and video inputs

AIM LLM

Summarization and language understanding (default: Llama 3.3 70B Instruct)

Key Features#

  • Multi-format support: PDF, DOCX, text, audio, and video

  • Automatic transcription: Whisper-based speech-to-text for multimedia files

  • LLM-powered summarization: Deploy with AIM

  • Microservices Architecture: Modular design with independent, scalable components

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options, such as reusing an existing AIM, providing a Hugging Face token, or overriding storage classes, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

This blueprint supports AMD Instinct (default), AMD EPYC, and AMD Radeon platforms. The section below covers the default Instinct deployment. For EPYC and Radeon deployment and other advanced options, see:

Prerequisites#

System Requirements#

The blueprint requires the following cluster resources by default:

Resource

Default Configuration

GPUs

1

CPUs

4 CPU cores

RAM

64 Gi

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

  • kubectl: Installed and configured to communicate with the cluster

  • Helm 3.17 or higher: Installed on your local machine

Deployment#

Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -:

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-docsum \
  | kubectl apply -f - -n $namespace

Note: You can create a namespace using kubectl create namespace $namespace.

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready. Summarization requires the LLM (and Whisper for media paths) to be up; the default AIM may take several minutes to start.

Connect to UI#

To connect to the UI, port-forward to 5173. The UI is then available at http://localhost:5173 in your browser.

kubectl port-forward services/aimsb-docsum-${name}-ui 5173:5173 -n $namespace

Once connected, use the application as follows:

  1. Choose a source: Upload one or more supported files (Text, Documents, Audio, or Video)

  2. Click “Generate Summary” to submit the request and wait for the summarization to finish

  3. Review the generated summary in the UI

Clean Up#

When you are finished, remove the deployed resources:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-docsum \
  | kubectl delete -f - -n $namespace

Third-Party Components#

This Solution Blueprint uses multiple third-party components. To see the full set of software and Python dependencies, explore the repository source and dependency files. For further license information, refer to each component’s official documentation.

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party Software and Materials used within the Solution Blueprints are governed by their respective licenses.
