Talk to Your Documents

Talk to Your Documents#

Overview#

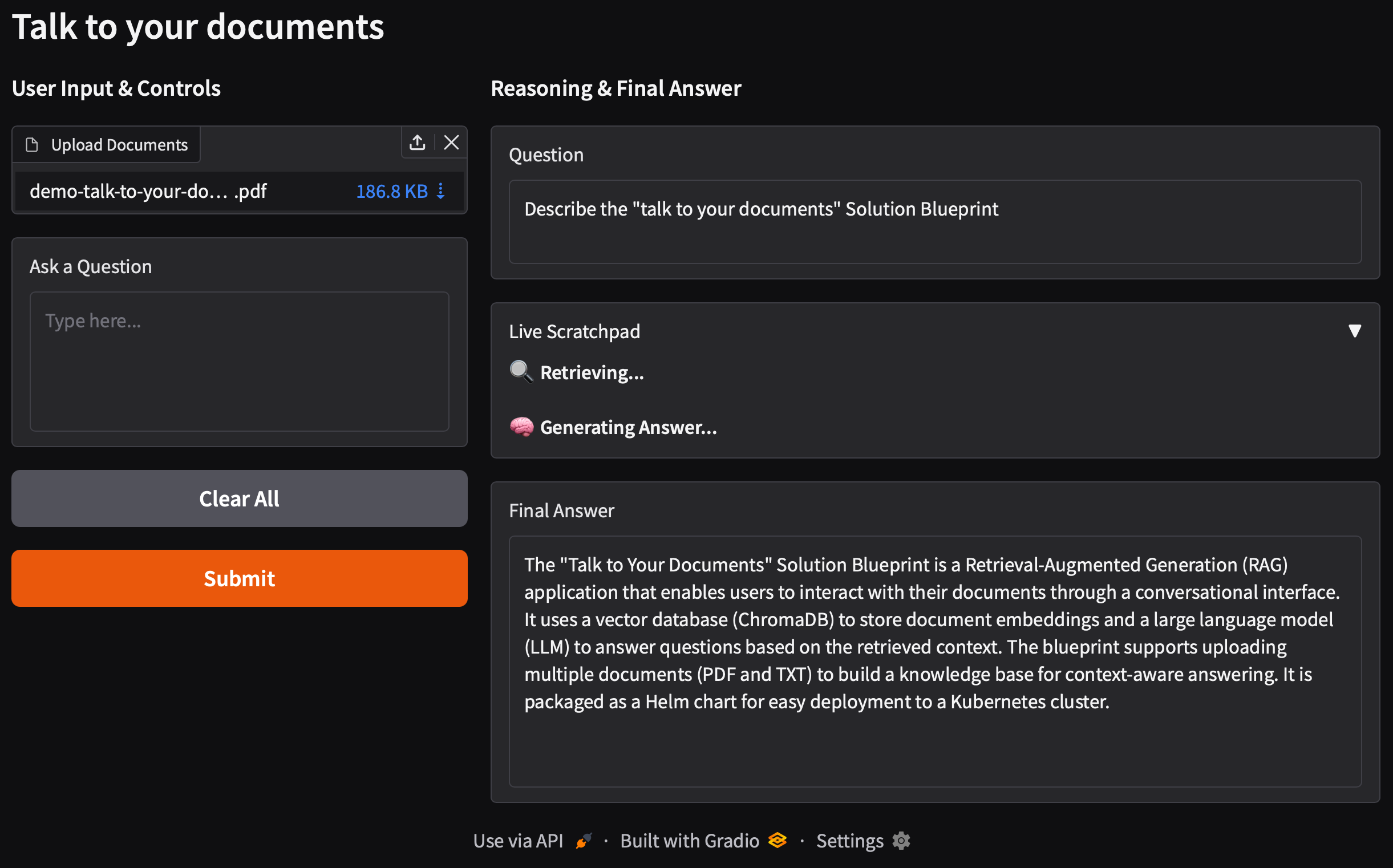

Talk to Your Documents UI

This Solution Blueprint deploys a Retrieval-Augmented Generation (RAG) application that lets you chat with your documents. It uses a vector database (ChromaDB) to store document embeddings and a Large Language Model (LLM) to answer questions based on the retrieved context.

AMD Solution Blueprints are packaged as Helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

Architecture#

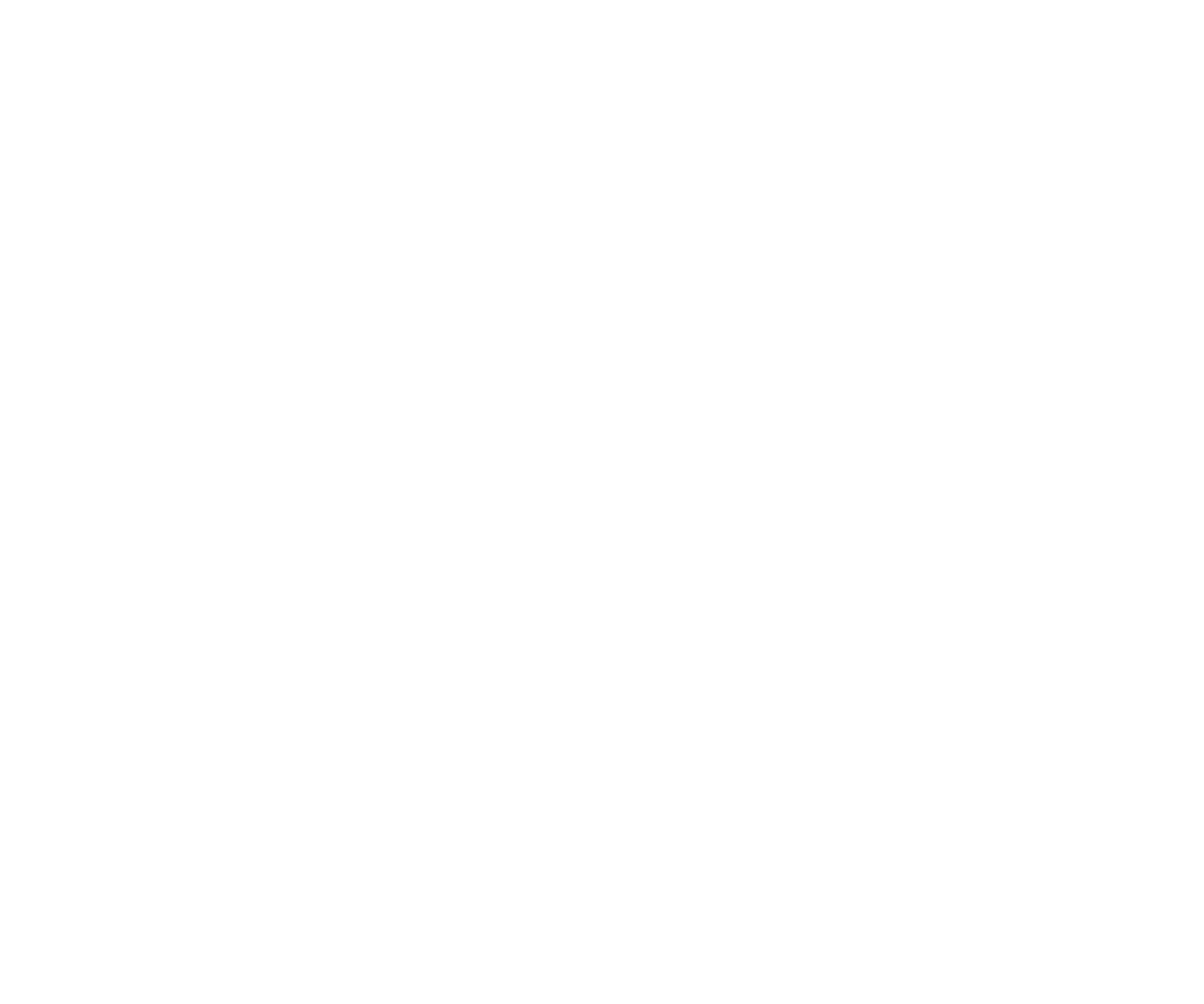

Talk to Your Documents consists of four components: an embedding server for embedding generation, a ChromaDB server for embedding storage and retrieval, an LLM server, and a Gradio UI server for the application itself. Talk to Your Documents consists of four components: an embedding server for embedding generation, a ChromaDB server for embedding storage and retrieval, an LLM server, and a Gradio UI server for the application itself.

Users upload documents and ask questions through the web UI:

  • Uploaded documents are chunked, embedded, and stored in ChromaDB.

  • For each question, relevant chunks are retrieved from the vector store and passed as context to the LLM, which generates an answer.

Component

Role

Talk to your documents UI

Web interface for uploading documents and asking questions.

AIM

Optimized LLM deployment for answer generation (default: Llama 3.3 70B Instruct).

Embedding model

A vLLM-based embedding server that generates document embeddings. See the application chart for its documentation.

ChromaDB vector store

Vector database for storing and retrieving document embeddings. See the application chart for more information.

Key Features#

  • Document-Based Q&A: Supports uploading multiple documents (PDF and TXT) to build a knowledge base for context-aware answering.

  • LLM-powered answers: Deployed with AIM (default: Llama 3.3 70B Instruct).

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options, such as reusing an existing AIM, providing a Hugging Face token, and more, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

This blueprint supports AMD Instinct (default), AMD EPYC, and AMD Radeon platforms. The section below covers the default Instinct deployment. For EPYC and Radeon deployment and other advanced options, see:

Prerequisites#

System Requirements#

The blueprint requires the following cluster resources by default:

Resource

Default Configuration

GPUs

2

CPUs

11 CPU cores

RAM

268 Gi

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

  • kubectl: Installed and configured to communicate with the cluster

  • Helm 3.17 or higher: Installed on your local machine

Deployment#

Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -:

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-talk-to-your-documents \
  | kubectl apply -f - -n $namespace

Note: You can create a namespace using kubectl create namespace $namespace.

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready. The application will be fully functional once the LLM, embedding, and ChromaDB services are up and running.

Connect to UI#

To connect to the UI, port-forward to 7860. The UI will then be available at http://localhost:7860 in your browser.

kubectl port-forward services/$name-aimsb-talk-to-your-documents 7860:80 -n $namespace

Clean Up#

When you are finished, remove the deployed resources:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-talk-to-your-documents \
  | kubectl delete -f - -n $namespace

Third-Party Components#

This Solution Blueprint utilizes multiple components. For third-party license information, refer to each component’s documentation. Key third-party components can be seen below:

Component

License

ChromaDB

Apache 2.0

Gradio

Apache 2.0

vLLM

Apache 2.0

LangChain

MIT

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party Software and Materials used within the Solution Blueprints are governed by their respective licenses.
