Agentic Testing

Agentic Testing#

Overview#

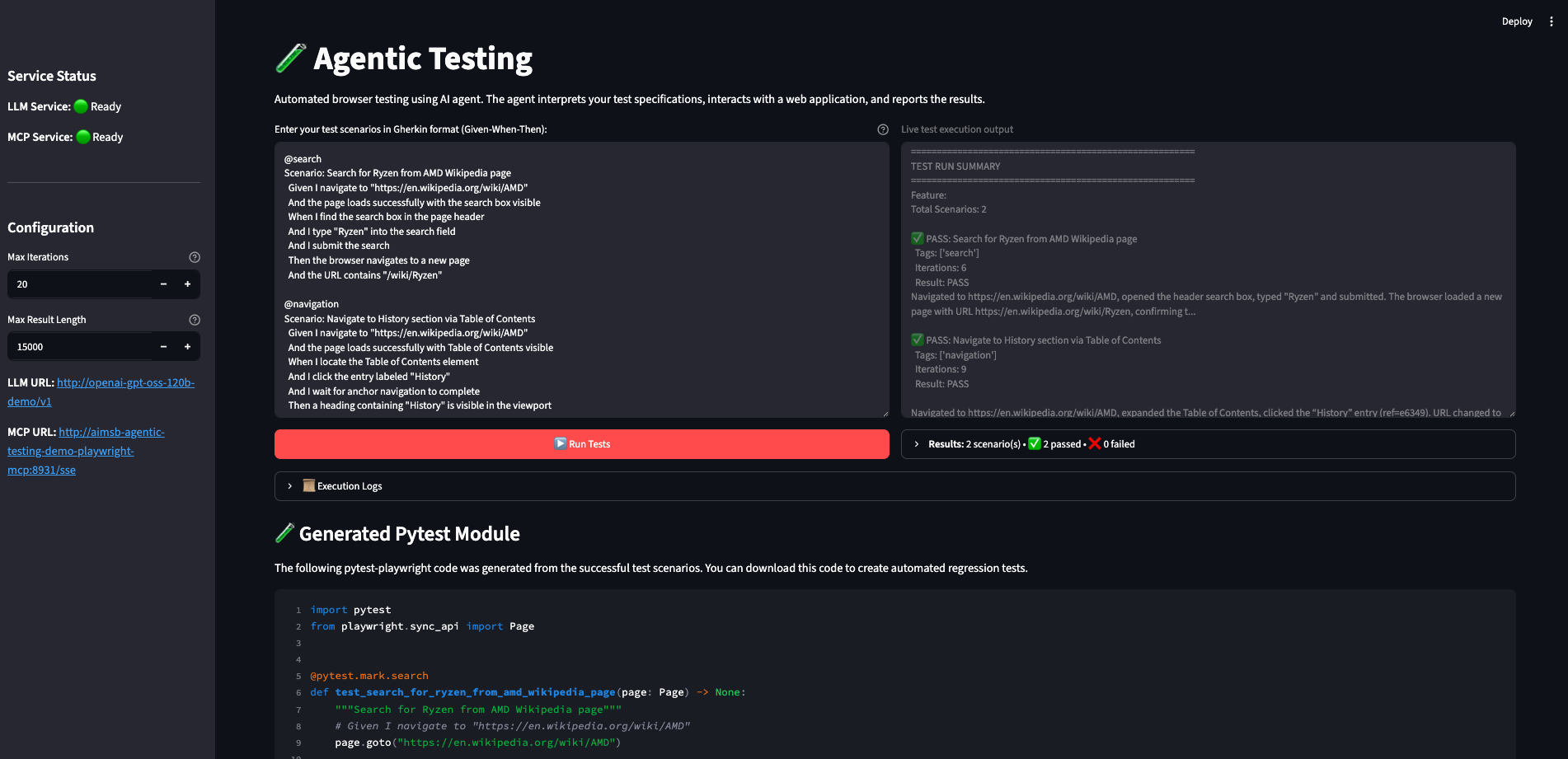

Agentic Testing UI

This Solution Blueprint is an AI-powered UI testing framework that uses an LLM agent with Model Context Protocol (MCP) for automated web testing. The agent interprets Gherkin-style Given-When-Then test specifications and executes them via MCP tool calls, providing real-time feedback during test execution. After completing the test run, the application generates a downloadable Pytest module that can independently re-run the same browser tests.

AMD Solution Blueprints are packaged as helm charts for deployment on a Kubernetes cluster. For development or further exploration, the source code is public and available in the Solution Blueprints GitHub repository.

Architecture#

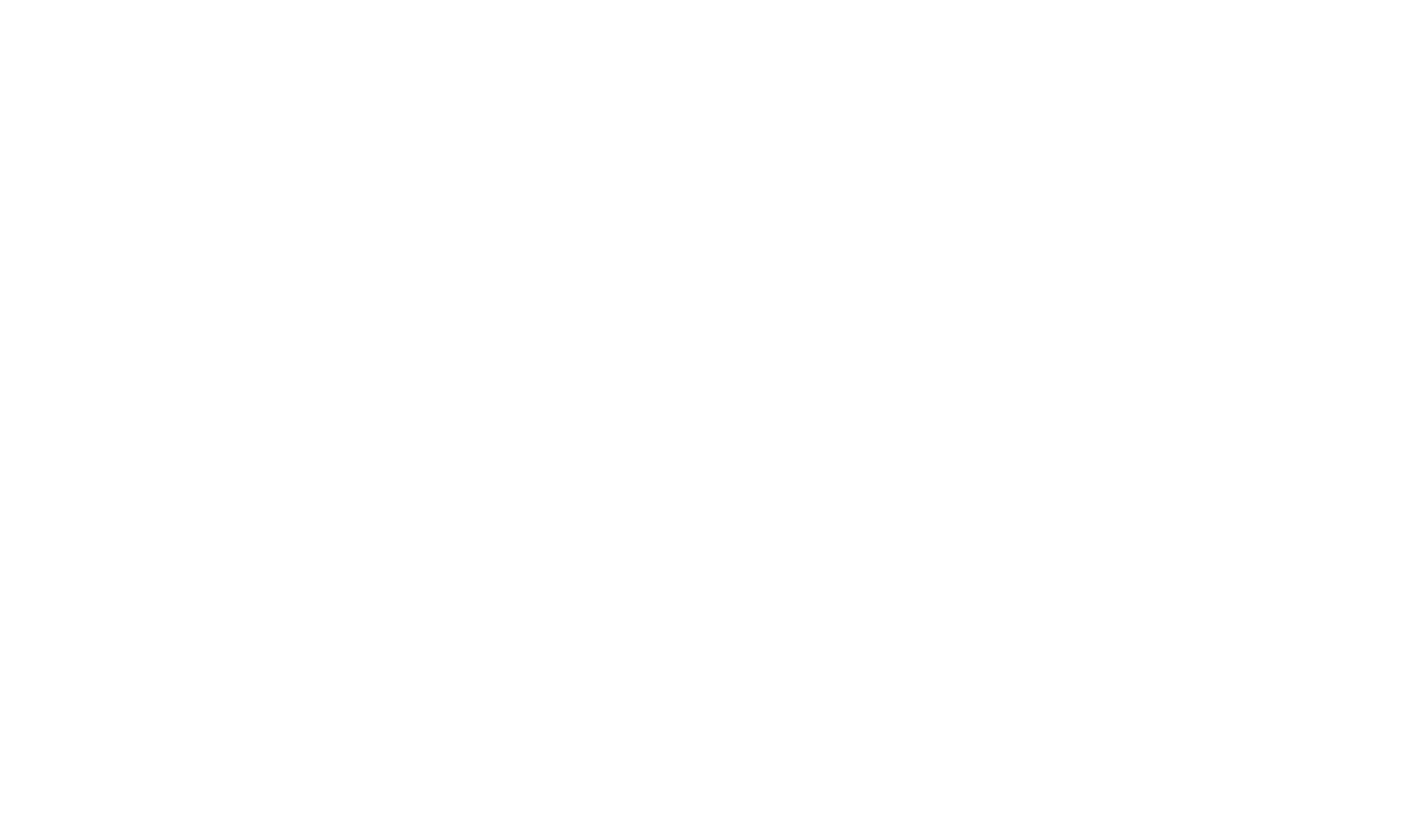

Agentic Testing consists of three components: an LLM server for test reasoning, a Playwright MCP server for browser automation, and a Streamlit UI server for the application itself. Agentic Testing consists of three components: an LLM server for test reasoning, a Playwright MCP server for browser automation, and a Streamlit UI server for the application itself.

The user enters test specifications in Gherkin format (Given-When-Then syntax) through the Streamlit web UI. The UI provides real-time feedback during test execution, displaying live logs and results as the agent interacts with the browser via Playwright MCP.

Component

Role

LLM Service

OpenAI-compatible endpoint (AIM vLLM or external), used for test reasoning and interpretation

Playwright MCP Server

Exposes browser automation tools via Model Context Protocol

Streamlit UI

Web interface

Testing Agent

Python-based orchestrator that connects LLM reasoning with MCP browser automation

Key Features#

  • Web-based UI for entering Gherkin (Given-When-Then) test specifications

  • Real-time test execution logs and progress tracking

  • Browser automation via Playwright MCP server

  • LLM service health monitoring in the UI sidebar

  • Connects to MCP server via SSE transport with automatic tool discovery

  • Pytest module generation from successful test scenarios

Getting Started#

This is a quick start guide on how to deploy the blueprint. For advanced options, such as reusing an existing AIM, providing a Hugging Face token, or overriding storage classes, see Deploying Solution Blueprints with Helm or explore the advanced deployment guide.

This blueprint supports AMD Instinct (default) and AMD Radeon platforms. The section below covers the default Instinct deployment. For Radeon deployment and other advanced options, see:

Prerequisites#

System Requirements#

The following cluster resources are required by default:

Resource

Default Configuration

GPUs

1

CPUs

8 CPU cores

RAM

72 Gi RAM

To deploy to the Kubernetes cluster, ensure the following prerequisites are met:

  • kubectl: Installed and configured to communicate with the cluster

  • Helm 3.17 or higher installed on your local machine

Deployment#

Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace), then pipe the output of helm template to kubectl apply -f -:

name="my-deployment"
namespace="my-namespace"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-agentic-testing \
  | kubectl apply -f - -n $namespace

Note: You can create a namespace using kubectl create namespace $namespace

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready.

Connect to UI#

To connect to the UI, port-forward to any chosen port, e.g., 8501. The UI will then be available at http://localhost:8501 in your browser.

kubectl port-forward services/aimsb-agentic-testing-${name}-ui 8501:8501 -n $namespace

Clean Up#

When you are finished, remove the deployed resources:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-agentic-testing \
  | kubectl delete -f - -n $namespace

Third-party Components#

This Solution Blueprint utilizes multiple components. For third-party license information, refer to each component’s documentation. Key third-party components are listed below.

Component

License

Playwright MCP

Apache-2.0

OpenAI Python SDK

Apache-2.0

Streamlit

Apache-2.0

MCP (Model Context Protocol)

MIT

Terms of Use#

AMD Solution Blueprints are released under the MIT License, which governs the parts of the software and materials created by AMD. Third-party software and materials used within the Solution Blueprint are governed by their respective licenses.
