Telecom Assistant#

Overview#

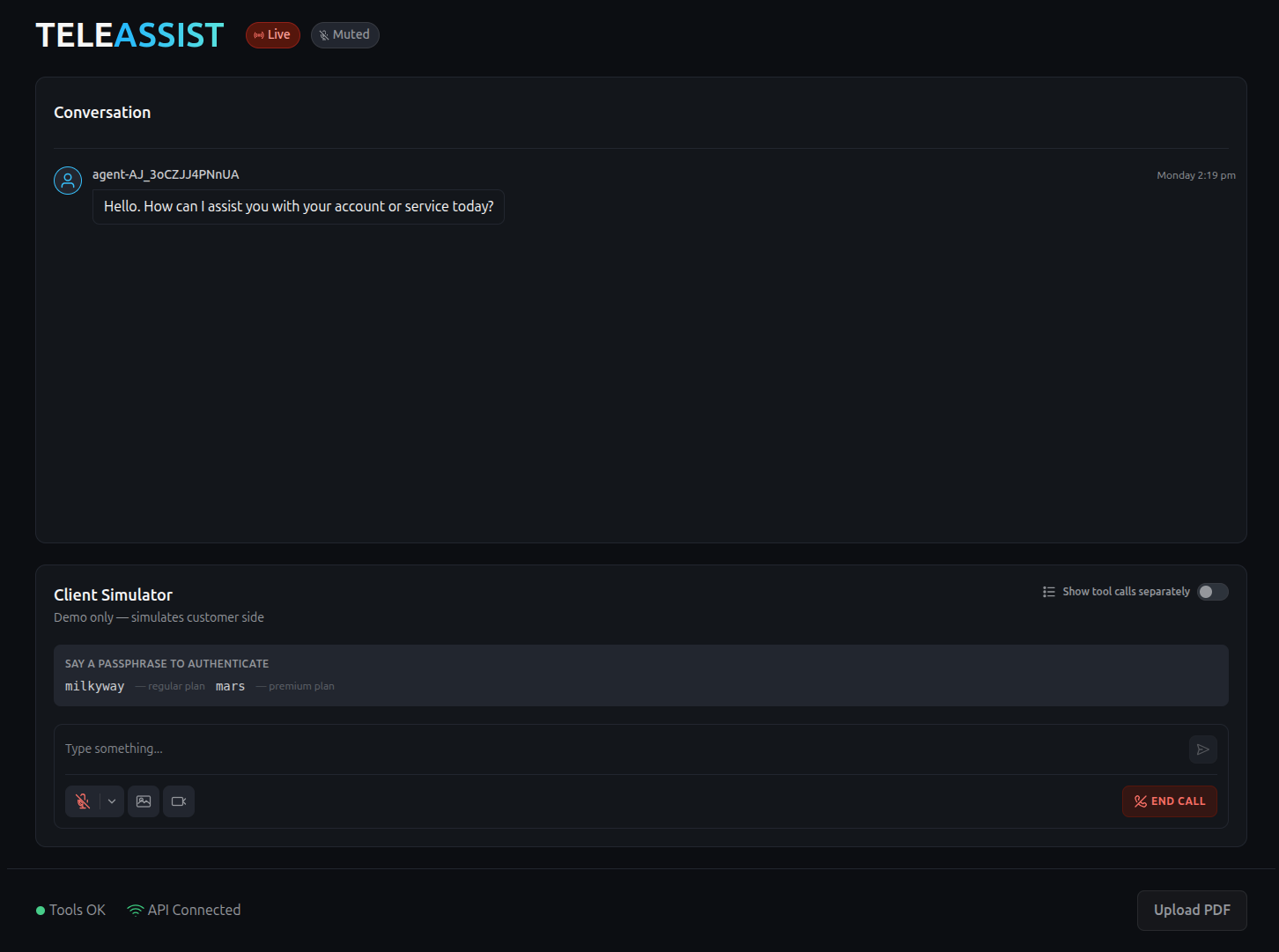

Telecom Assistant UI

This blueprint provides an end-to-end conversational AI solution for telecom billing inquiries. It leverages an agentic orchestration architecture with microservices for voice interaction, billing data retrieval, document search, and support ticket escalation. The solution integrates with LiveKit for real-time voice communication, BSS Gateway for billing information, and vector stores for FAQ and plan documentation.

This blueprint is designed to run on AMD Instinct GPUs. For examples of deploying on AMD EPYC and AMD Radeon, see the other blueprints in the catalog.

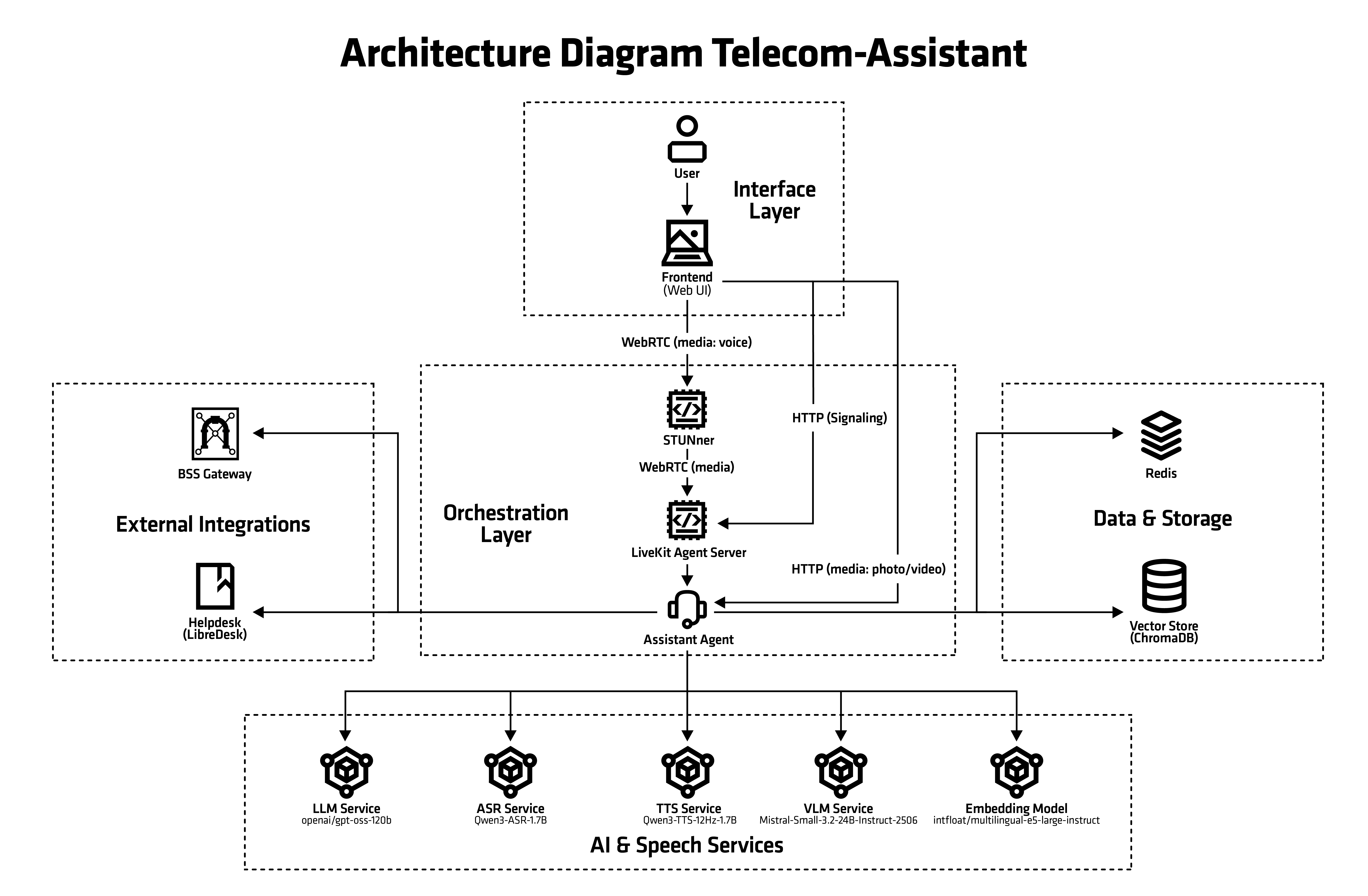

Architecture#

Component	Description
Frontend (Web UI)	React-based web application for telecom managers and engineers to explore and validate all blueprint capabilities. Provides chat, voice, media upload, and knowledge base management. This is a demonstration interface — not an end-user application.
STUNner	Kubernetes-native WebRTC media gateway (STUN/TURN) that routes browser media traffic to the LiveKit Agent Server.
LiveKit Agent Server	Real-time communication layer responsible for handling WebRTC audio/video streams and connecting user sessions with the Assistant Agent.
Assistant Agent	Core orchestration service that manages conversation flow, coordinates AI services, retrieves contextual information, executes troubleshooting workflows, and interacts with external systems.
BSS Gateway	Integration service that provides access to customer account information, billing data, balances, payments, invoices, service plans, and usage quotas.
Helpdesk (LibreDesk)	Helpdesk platform used for creating and managing customer support tickets when issues require escalation.
Redis	Data store used for session management, caching user media files (photos and videos), and storing agent evaluation results.
Vector Store (ChromaDB)	Vector database used to store embeddings and perform semantic retrieval of FAQs, product documentation, and troubleshooting guides.
LLM Service	Large Language Model responsible for reasoning, response generation, tool invocation, and conversation management.
ASR Service	Automatic Speech Recognition service that converts user speech into text.
TTS Service	Text-to-Speech service that generates voice responses from text.
VLM Service	Vision-Language Model used to analyze user-submitted photos and videos, as well as images contained within knowledge base documents.
Embedding Model	Service that generates vector embeddings for documents and user queries to support semantic search and retrieval in ChromaDB.

STUNner Integration

Media traffic from the browser-based frontend to the LiveKit service is routed through STUNner — a Kubernetes-native WebRTC media gateway. STUNner acts as a STUN/TURN gateway, simplifying NAT traversal and firewall configuration. Direct exposure of LiveKit UDP media ports is no longer required in most setups.

For configuration details, see docs/DEPLOYMENT.md.

Key Features#

Realtime voice communication via LiveKit with media traffic routed through STUNner ( Kubernetes-native WebRTC gateway).
Conversational voice assistant for billing inquiries: authenticate users, retrieve plan details, balance, payments, invoices, quotas, and account information.
Technical support and troubleshooting assistance powered by LLM workflows and domain-specific knowledge.
Multimodal troubleshooting: users can upload photos and videos that are analyzed by the assistant to diagnose issues and recommend resolution steps.
Agentic orchestration: the agent coordinates authentication, data retrieval from the BSS Gateway, knowledge retrieval from ChromaDB, troubleshooting workflows, and ticket creation in helpdesk systems.
Voice integration via LiveKit: supports ASR (Automatic Speech Recognition), TTS (Text-to-Speech), and real-time conversations.
Knowledge retrieval: hybrid RAG architecture powered by ChromaDB for FAQs, plan information, operational procedures, and troubleshooting guides.
Runtime knowledge base management: upload and ingest PDF documents directly from the web UI to continuously extend and update the RAG knowledge base without system redeployment.
Support escalation: automatically create tickets in LibreDesk for unresolved issues or cases requiring human intervention.
Redis caching and session management: store conversation history, cache user media files during active sessions, and persist agent evaluation metrics for performance monitoring.
Demonstration web interface: a staff-facing frontend for telecom managers and engineers to explore all blueprint capabilities, including chat, voice interactions, document ingestion, and knowledge base management.

Getting Started#

Prerequisites#

Access to a Kubernetes cluster with cluster-admin rights (or permissions to create CRDs, ClusterRole, and ClusterRoleBinding).
STUNner Operator installed on the cluster (run ./install-prerequisites.sh once per cluster).
Persistent storage available for ChromaDB and Redis.
LLM, VLM, ASR, TTS, and Embedding model endpoints (self-hosted or external).

System Requirements#

Infrastructure#

Kubernetes cluster
STUNner Operator installed on the cluster
Persistent storage for ChromaDB and Redis

Application Layer (excluding AI model inference)#

Resource	Requirement
CPU	2–4 vCPUs
Memory	4–8 GB RAM
Storage	10–20 GB

Self-Hosted AI Models#

If hosting AI models locally instead of using external endpoints:

1–5 GPUs depending on the selected models, quantization strategy, and expected concurrency.
Additional storage for model weights and embeddings.

Deployment#

Solution Blueprints are packaged as OCI-compliant Helm charts in the Docker Hub registry and can be deployed to a Kubernetes cluster with a single command. Define the name (deployment name) and the namespace (Kubernetes namespace) and also frontend_livekit_ws_url - variable with url to access to livekit, then pipe the output of helm template to kubectl apply -f -:

name="my-deployment"
namespace="my-namespace"
frontend_livekit_ws_url="wss://livekit.example.com"
helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-telecom-assistant \
  --namespace $namespace \
  --set "mainServices.frontend.env.LIVEKIT_URL=$frontend_livekit_ws_url" \
  | kubectl apply -f - -n $namespace

Note: You can create a namespace using kubectl create namespace $namespace

To check the status of the deployment, run:

kubectl get pods -n $namespace

Wait until all pods report Running and Ready.

Refer to docs/DEPLOYMENT.md for full deployment instructions, including STUNner and LiveKit configuration details.

Connect to the UI#

To connect to the UI, port-forward to any chosen port, e.g., 3000. The UI will then be available at http://localhost:3000 in your browser.

kubectl port-forward "svc/aimsb-telecom-assistant-$name-frontend" 3000:3000 -n $namespace

After deployment, open the web interface URL in your browser. The frontend supports:

Chat — text-based conversation with the assistant.
Voice — real-time voice interaction via LiveKit (WebRTC).
Media upload — send photos or videos for multimodal troubleshooting.
Document ingestion — upload PDF files via the “Upload PDF” button (bottom right) to extend the RAG knowledge base without redeployment.

Refer to docs/DEPLOYMENT.md for full Connect to the UI instructions.

Clean Up#

When you are finished, remove the deployed resources:

helm template $name oci://registry-1.docker.io/amdenterpriseai/aimsb-telecom-assistant \
  --namespace $namespace \
  --set "mainServices.frontend.env.LIVEKIT_URL=$frontend_livekit_ws_url" \
  # ... (same parameters as deployment) ...
  | kubectl delete -f - -n $namespace

Usage#

Authentication Flow#

User provides a secret passphrase for authentication.
The agent normalizes and verifies it via the BSS Gateway.
Once authenticated, the agent can access user-specific billing data.
Authentication is not required for technical support cases.

Tool Usage#

The assistant agent can invoke the following tools during conversations:

Retrieve user info, balance, payments, plans, and quotas.
Search billing documents for FAQs and policies.
Search troubleshooting guides in the knowledge base (ChromaDB).
Retrieve user media files to analyze and diagnose issues.
Escalate to helpdesk by creating tickets in LibreDesk.

Ticket Escalation#

If the agent cannot resolve the user’s inquiry, it can escalate the issue by creating a support ticket in the helpdesk system (LibreDesk).

Viewing Tickets in LibreDesk#

Once a ticket is created, the agent provides the ticket ID. To view the ticket in the LibreDesk web interface:

Log in to the LibreDesk web interface at your configured LibreDesk URL with username System and the password from the environment variable LIBREDESK_SYSTEM_USER_PASSWORD

You can check the value of this default password using the command: helm show values oci://registry-1.docker.io/amdenterpriseai/aimsb-telecom-assistant --jsonpath='{.infraServices.libredesk.env.LIBREDESK_SYSTEM_USER_PASSWORD}'

Navigate to the Unassigned section and select ALL.
Search for the ticket using the provided ticket ID or filter by user details. Newly created tickets appear first in the list.

Example Scenarios#

This section demonstrates typical conversation flows and agent capabilities with real-world examples.

Scenario 1: Plan Inquiry and Upgrade Request#

Bot: “Hello. How can I assist you with your account or service today?”
Client: “Tell me about my current plan.”
Bot: “For security, please say your secret passphrase for your account.”
Client: “mars”
Tool: get_user_by_pass_phrase("mars")
Bot: “Confirmed. One moment while I check your plan.”
Tool: get_user_plan_name(user_id)
Tool: billing_docs_search("PlanName price inclusions roaming calls SMS")
Bot: “You’re on the PlanName plan. It’s X dollars per month and includes Y gigabytes plus unlimited national calls and texts. What should I clarify?”
Client: “Is roaming included?”
Tool: billing_docs_search("PlanName roaming limit rate destinations")
Bot: “Yes. You get X megabytes of roaming per month, then it’s Y dollars per megabyte. Want the destinations list?”
Client: “That’s too expensive, I want something cheaper.”
Tool: billing_docs_search("available plans cheaper than PlanName")
Bot: “Option A is X dollars per month and could save you about Y dollars monthly, with less data but unlimited calls. Want to switch?”
Client: “For sure.”
Bot: “What date should the new plan start, for example next month or on a specific day?”
Client: “Since next month.”
Bot: “Understood. I’ll request a switch to Option A starting next month. Please confirm.”
Client: “That’s right.”
Tool: create_ticket(user_id, "Plan change request: switch from PlanName to Option A starting next month. User confirmed.")
Bot: “All set. I’ve filed a request for your account manager, and they’ll get back to you soon.”

Scenario 2: Slow Internet Due to High-Speed Quota Exhaustion#

Bot: “Hello. How can I assist you with your account or service today?”
Client: “My internet is super slow, basically unusable. Apps won’t load, videos buffer forever. What’s going on?”
Bot: “I understand how frustrating that is. For security, please tell me your secret passphrase for the account.”
Client: “milkyway”
Tool: get_user_by_pass_phrase("[milkyway]")
Bot: “Confirmed. One moment while I check your plan and data limits.”
Tool: get_user_plan_name(user_id)
Tool: get_plan_quotas(user_id, plan_name)
Tool: billing_docs_search("throttling reduced speed after high-speed quota exhausted; renewal date; how to restore speed")
Bot: “Thanks — I checked your account. You’re on the [PlanName] plan. You’ve used up your included high-speed data for this month, so your connection was automatically moved to a reduced speed (around [slow] Mbps). That’s why everything feels slow. Your plan will reset on [next renewal date], but I can help you get fast internet back immediately. Would you like to proceed?”
Client: “Please go on.”
Tool: billing_docs_search("available data boost options for PlanName price GB; plan upgrade options vs current plan")
Bot: “You have two quick options:
1. One-time data boost: adds [extra] GB of high-speed data right now for [amount] ( one-time charge on your next bill or deducted from prepaid credit). It activates in under 60 seconds and lasts until your plan renews.
2. Upgrade your plan: better if you often run out. Switch to [ProPlan] for [more expensive] / month (that’s [delta] more than now). You’ll get [large] GB high-speed data monthly plus additional benefits.
Which would you prefer right now — the quick [extra] GB boost, the plan upgrade, or should I check other options?”
Client: “I don’t want to pay more every month. Just give me some extra data for now.”
Tool: billing_docs_search("PlanName one-time data boost confirmation terms price validity")
Bot: “Got it — the one-time boost makes sense. I can activate [extra] GB extra high-speed data for [amount] (one-time). Just to confirm:
- Adds [extra] GB immediately
- Cost: [amount] (next invoice / deducted if prepaid)
- No change to your current plan
- Valid until [renewal date]
Is it OK to go ahead?”
Client: “Yes, do it.”
Tool: add_extra_quota(user_id, plan_name, quota=[extra])
Tool: create_ticket(user_id, "quota_upsale_event: user_id=..., plan=..., extra_gb=..., amount=..., confirmed=true")
Bot: “Perfect — activating now… Done. Your high-speed data is live again. You should notice the improvement within 30–60 seconds. Anything else I can help you with today (for example, check current usage or recommend a plan that avoids running out)?”

PREREQUISITES FOR CORRECT EXECUTION OF SCENARIOS 3 AND 4

Upload a PDF with troubleshooting guides using the UI (you can find the “Upload PDF” button at the bottom right). In these scenarios, you — as the person evaluating this blueprint — play the role of an operator populating the knowledge base. This step demonstrates how easily new documents can be added to the RAG knowledge base without redeployment. In a real deployment, this document would be uploaded in advance by an engineer, not provided by the end user during a support session.

All files used in these scenarios (including the troubleshooting guides PDF) are available in the demo directory.

Scenario 3: Wi-Fi and fiber internet troubleshooting (success)#

Bot: “Hello. How can I assist you with your account or service today?”
Client: “My internet is not working”
Bot: “Could you send me a photo of the back of your router? I need to identify the model before we start.”
Client: (upload file Router_Back.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'Router_Back.jpg'
Tool: identify_router_model
Bot: “I can see you have a ZTE ZXHN H3600P router. I have a troubleshooting guide for this model. Could you send me a photo of the front panel so I can see the indicator lights?”
Client: (upload file No Broad_Band.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'No Broad_Band.jpg'
Tool: troubleshooting_search
Bot: “Your Broadband LED is off, which means the router is not detecting any cable in the WAN port. The Ethernet cable between the ONT and the router’s WAN port is likely missing, loose, or faulty. Could you send me a photo of the back of the router so I can see whether a cable is plugged into the WAN port?”
Client: (upload file Router_Back.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'Router_Back.jpg'
Bot: “Your back‑panel photo shows no Ethernet cable plugged into the WAN port. Please connect an Ethernet cable from the ONT’s LAN port to the router’s WAN port. Then power‑cycle both devices: unplug each for 30 seconds, plug the ONT back in first, wait about 1 minute, and finally plug the router back in. After they restart, could you send a new photo of the front panel so I can check whether the Broadband LED has turned green?”
Client: (upload file Broad_Band_OK_No_Internet.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'Broad_Band_OK_No_Internet.jpg'
Tool: troubleshooting_search
Bot: “The router has a connection but can’t reach the internet — this points to a problem with the ONT, the optical terminal box. Could you send me a VIDEO of the ONT? If any lights are flashing, a video will capture that better than a photo.”
Client: (upload file No_Fibra.mp4) “I’ve uploaded video”
Tool: get_uploaded_files() Uploaded files: File 'No_Fibra.mp4'
Tool: troubleshooting_search
Bot: “Your ONT shows a solid red LOS light, which means it has lost the fiber signal. Please:
- Unplug the thin yellow fiber cable from the ONT.
- Check the connector tip for dust and gently clean it.
- Plug the cable back in firmly until it clicks.
- Unplug the ONT’s power supply, wait 30 seconds, then plug it back in.
- Wait about 3 minutes for the ONT to restart.
After it’s back on, could you send me a new video of the ONT so I can confirm the LOS light has changed?”
Client: (upload file ONT_OK.mp4) “I’ve uploaded video”
Tool: get_uploaded_files() Uploaded files: File 'ONT_OK.mp4'
Bot: “The LOS light is now solid blue, so the fiber signal has been restored and the ONT is reconnecting. Could you send me a photo of the router’s front panel so I can check whether the Internet LED has turned green?”
Client: (upload file All is OK.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'All is OK.jpg'
Bot: “Both the Broadband and Internet lights are green, which means the connection is restored. Is your internet working now?”
Client: “Yes, now internet is working”
Tool: end_session
Evaluation modal window — evaluation of the agent’s work

Scenario 4: Wi-Fi and fiber internet troubleshooting (escalate to support)#

Bot: “Hello. How can I assist you with your account or service today?”
Client: “My internet is not working”
Bot: “Could you send me a photo of the back of your router? I need to identify the model before we start.”
Client: (upload file Router_Back.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'Router_Back.jpg'
Tool: identify_router_model
Bot: “I can see you have a ZTE ZXHN H3600P router. I have a troubleshooting guide for this model. Could you send me a photo of the front panel so I can see the indicator lights?”
Client: (upload file No Broad_Band.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'No Broad_Band.jpg'
Tool: troubleshooting_search
Bot: “Your Broadband LED is off, which means the router isn’t detecting a cable in the WAN port. Could you send me a photo of the back of the router so I can check whether a cable is plugged into the WAN port?”
Client: (upload file Router_Back.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'Router_Back.jpg'
Bot: “I can see the WAN port has no cable plugged in. Please connect an Ethernet cable from the ONT’s LAN port into the router’s WAN port. Then power‑cycle both devices: unplug each for 30 seconds, plug the ONT back in first, wait about one minute, and plug the router back in. After it powers up, could you send a new photo of the front panel so I can check the LED status?”
Client: (upload file Router_Back.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'Router_Back.jpg'
Tool: troubleshooting_search
Bot: “Your front‑panel photo still shows Broadband LED off and Internet LED off. Please try a different Ethernet cable between the ONT and the router’s WAN port. Then power‑cycle both devices: unplug each for 30 seconds, plug the ONT back in first, wait about 1 minute, and plug the router back in. After it restarts, could you send another photo of the front panel so I can see whether the Broadband LED has turned green?”
Client: (upload file No Broad_Band.jpg) “I’ve uploaded photo”
Tool: get_uploaded_files() Uploaded files: File 'No Broad_Band.jpg'
Bot: “Your Broadband LED is still off. Please check the WAN port again – make sure an Ethernet cable is firmly connected (try a different cable if you have one) and power‑cycle both the ONT and the router (unplug each for 30 seconds, plug the ONT back in first, wait one minute, then plug the router back in). After doing that, could you send a new photo of the back of the router so I can verify the WAN cable connection?”
Client: “I’ve done it but it doesn’t help, the problem is still here.”
Bot: “Please send a photo of the back of the router, focusing on the WAN port, so I can verify that the Ethernet cable is properly connected.”
Client: “Sorry, now I can’t”
Tool: escalate_to_support
Bot: “Your issue has been escalated to our support team. They will review the details and get back to you shortly. Goodbye.”
Tool: end_session
Evaluation modal window — evaluation of the agent’s work

Model Compatibility#

This Blueprint has been validated with:

LLM: aim-openai-gpt-oss-120b
VLM: mistralai/Mistral-Small-3.2-24B-Instruct-2506

The solution is designed for models of equivalent or greater capability. Prompts and agent workflows have been optimized and tested for this class of language and vision-language models, including tool calling, RAG retrieval, and multimodal troubleshooting scenarios.

Third-Party Components#

This blueprint integrates the following third-party open-source components:

Component	Purpose
LiveKit	Real-time voice/video communication (WebRTC)
STUNner	Kubernetes-native WebRTC media gateway (STUN/TURN)
ChromaDB	Vector store for semantic search and RAG
Redis	Session management, media caching, metrics storage
LibreDesk	Helpdesk platform for support ticket management

Each third-party component is governed by its own respective license.

Terms of Use#

AMD Solution Blueprints are released under MIT License, which governs the parts of the software and materials created by AMD. Third party Software and Materials used within the Solution Blueprints are governed by their respective licenses.
